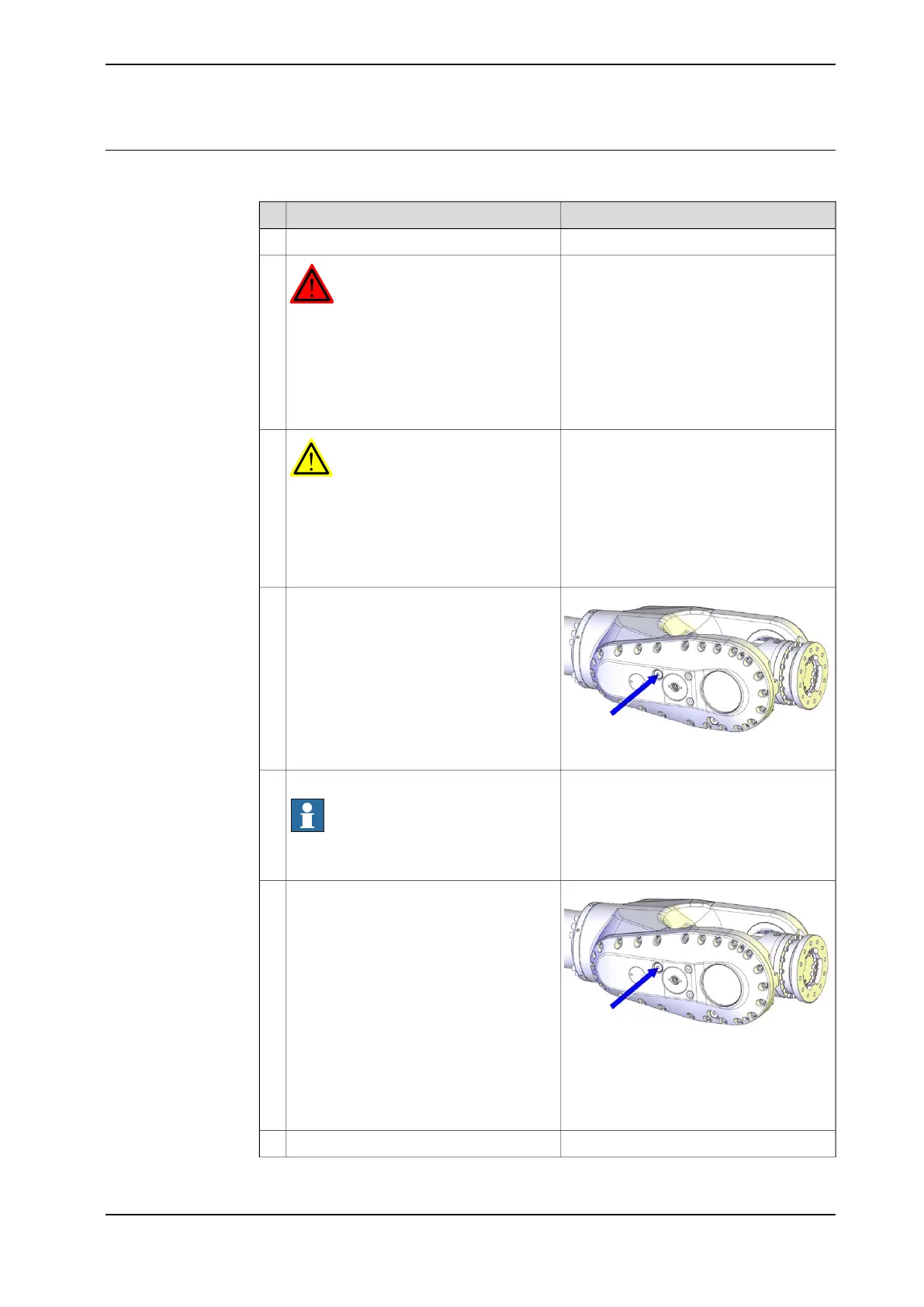

Filling oil into the axis-5 gearbox
Use this procedure to refill the gearbox with oil.
NoteAction
Run the robot to calibration position.1
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot
working area.
2
WARNING
Handling gearbox oil involves several
safety risks. Before proceeding, please
read the safety information in the section
WARNING - Safety risks during work with
gearbox lubricants (oil or grease) on
page 49.
3
xx1200000959
Open the fill plug.4
Type of oil and total amount is detailed in
Technical reference manual - Lubrication
in gearboxes.
Refill the gearbox with oil.
Note
The amount of oil to be filled depends on
the amount previously being drained.
5
xx1200000959
Inspect the oil level at the oil fill hole (level
plug).
6
Required oil level is: 0 - 10 mm below the
oil plug hole.
More information is found in Inspecting the
oil level in axis-5 gearbox on page 113.
Tightening torque: 24 NmRefit the oil plug.7
Continues on next page
3HAC044266-001 Revision: - 159
© Copyright 2013 ABB. All rights reserved.
3 Maintenance
3.4.6 Changing oil, axis-5 gearbox
Continued
