4.5.4 Replacing the lower arm
Location of the lower arm

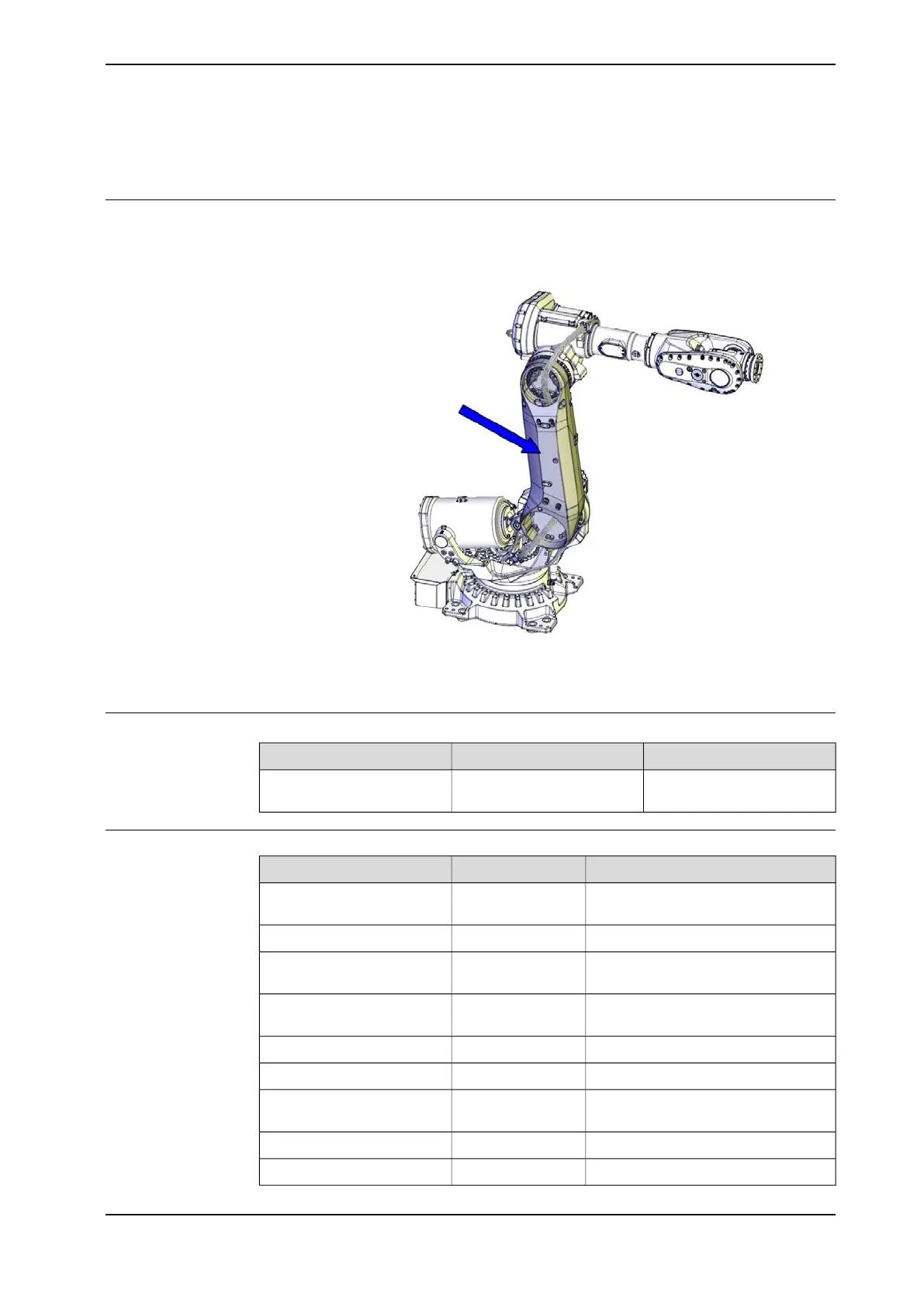

The lower arm is located as shown in the figure.
xx1300000786
Spare part
NoteSpare part numberSpare part
See Product manual, spare
parts - IRB 6700.
Lower arm
Required tools and equipment
NoteArticle numberEquipment, etc.
Used for unloading a balancing device
fitted to the robot.
3HAC030662-001Distance tool
SA-10-8-NA1-Lifting shackle
Lifting instruction 3HAC15880-2 en-
closed.
3HAC15556-1Lifting accessory (chain)
Used for removing and fitting shaft and
bearings.
3HAC028920-001Dismantle and mounting tool
M123HAC16131-1Lifting eye
M123HAC16131-1Lifting eye
Lifting instruction 3HAC15880-2 en-
closed.
3HAC15556-1Lifting accessory (chain)
Always use guide pins in pairs!3HAC13056-2Guide pin, M12x150
Always use guide pins in pairs!3HAC13056-3Guide pin, M12x200
Continues on next page
3HAC044266-001 Revision: - 297
