ABB IRB 6700 - Lower and Upper Arm Unseparated

4.3.2 Lower and upper arm unseparated

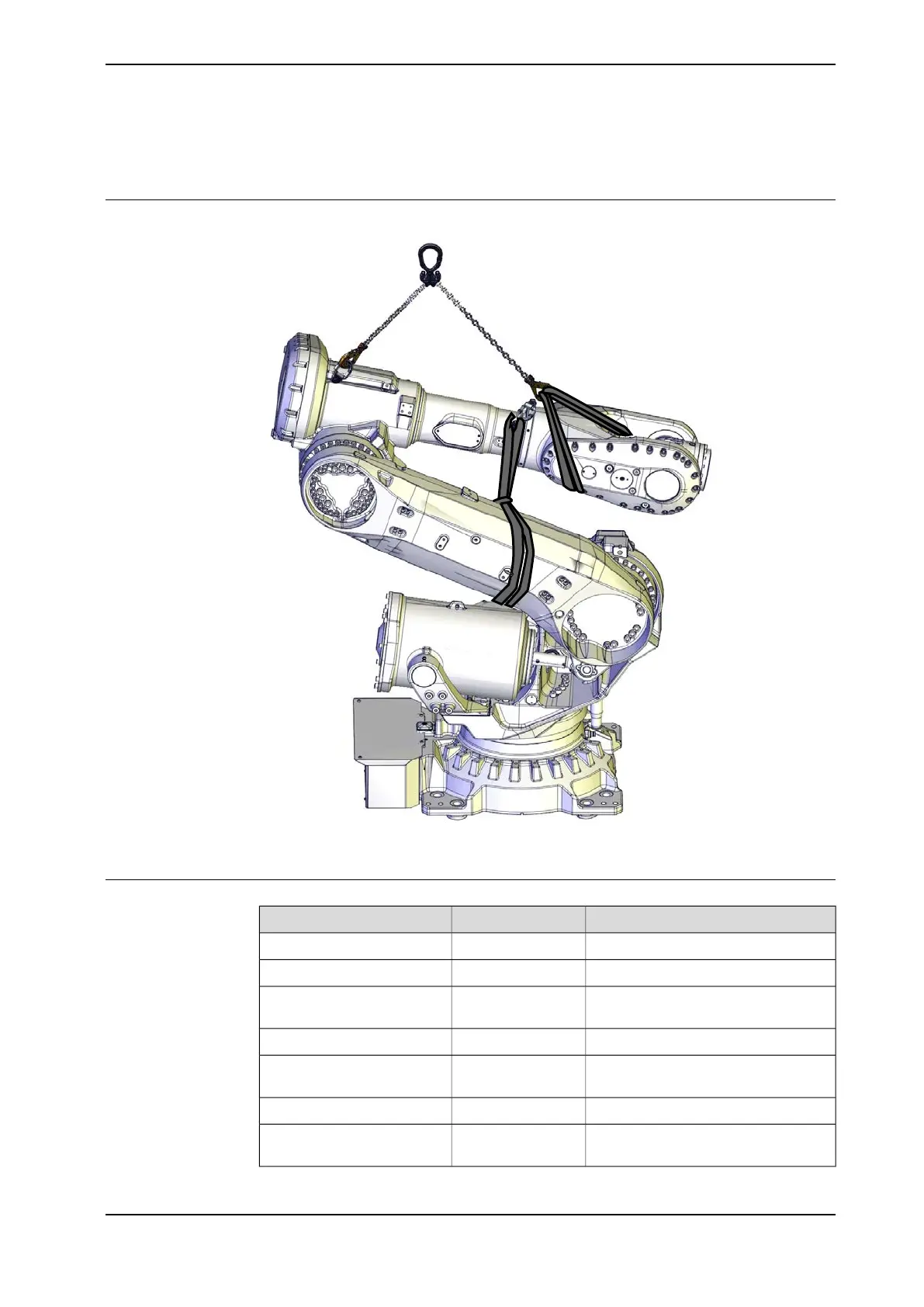

Attachment points of lifting accessory
xx1200001254
Required tools
NoteArticle numberEquipment, etc.
M123HAC16131-1Lifting eye
M123HAC16131-1Lifting eye
Outer diameter: minimum 26 mm, hole
diameter: 13 mm, thickness: 3 mm.
-Fender washer
SA-10-8-NA1-Lifting shackle
Length: 1.5 m. Lifting capacity: 1,000
kg.
-Roundsling, 1.5 m
Length: 1 m. Lifting capacity: 1,000 kg.-Roundsling, 1 m
Lifting instruction 3HAC15880-2 en-
closed.
3HAC15556-1Lifting accessory (chain)
