NoteAction

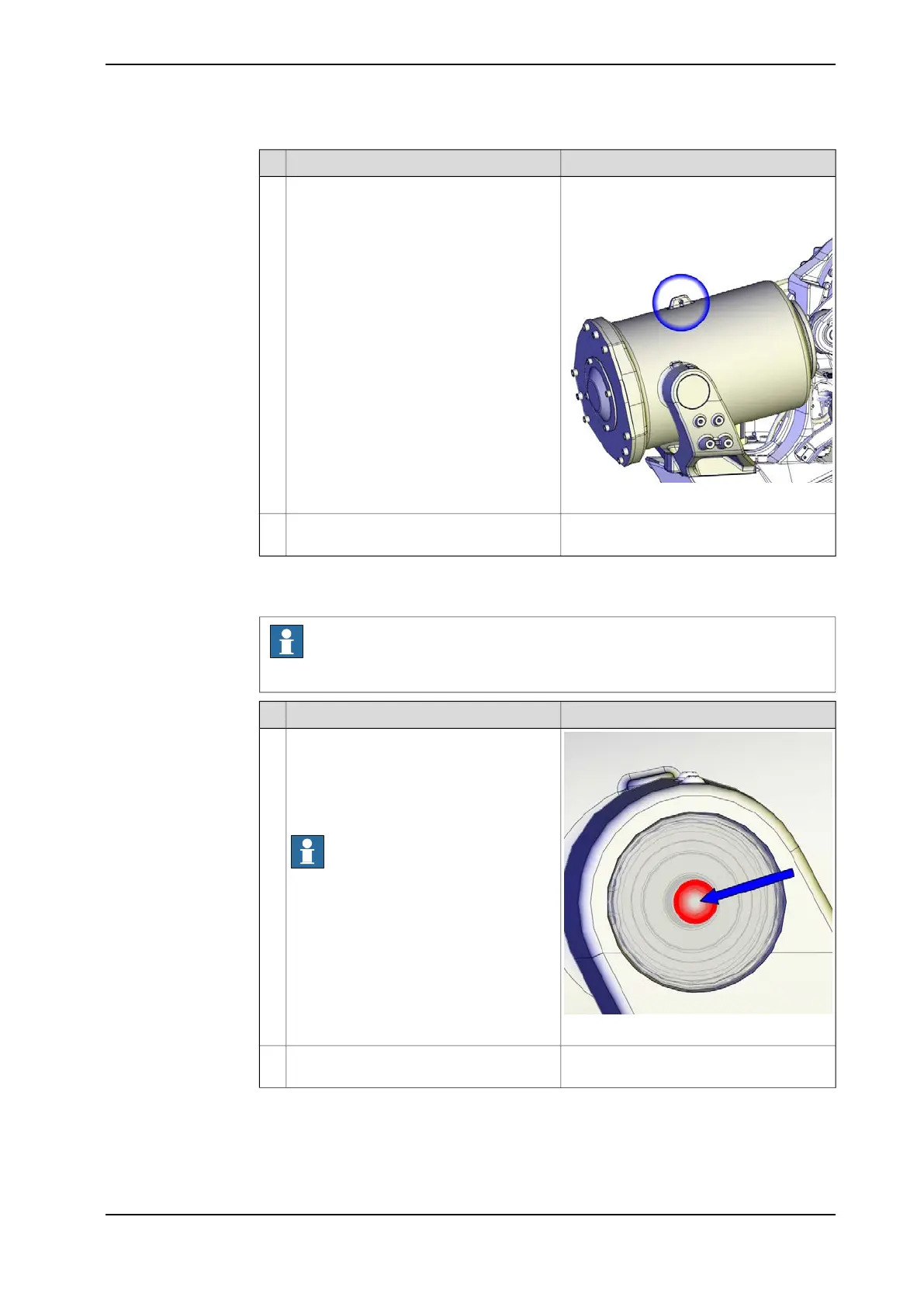

Lifting shackle: SA-10-8-NA1
xx1300000661
Fit a lifting shackle to the balancing device.5
Lifting accessory (chain): 3HAC15556-1Fit the lifting accessory to the shackle and
raise to unload the weight.
6
Removing the shaft end, cradle
The procedure of removing the shaft end in the cradle is the same on both sides.
Note
Remove one shaft end at a time!
NoteAction
xx1300000662
Remove the VK cover by driving a screw-
driver (or similar) through the VK cover, as
close as possible to the center of the VK
cover. If not making a hole in the center of
the VK cover, there is a risk of damaging
the bearing inside.
Note
It is almost impossible to remove the VK
cover without damage. New VK covers are
needed.
1
Wipe off all residual grease inside the re-
cess.
2
Continues on next page
3HAC044266-001 Revision: - 371
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.6.3 Replacing the rear bearing of the balancing device
Continued
