ABB IRB 6700 - Calibration Scale and Correct Axis Position; Calibration Scales;Marks, IRB 6700

5.3 Calibration scale and correct axis position
Introduction
This section specifies the calibration scale positions and/or correct axis position
for all robot models.

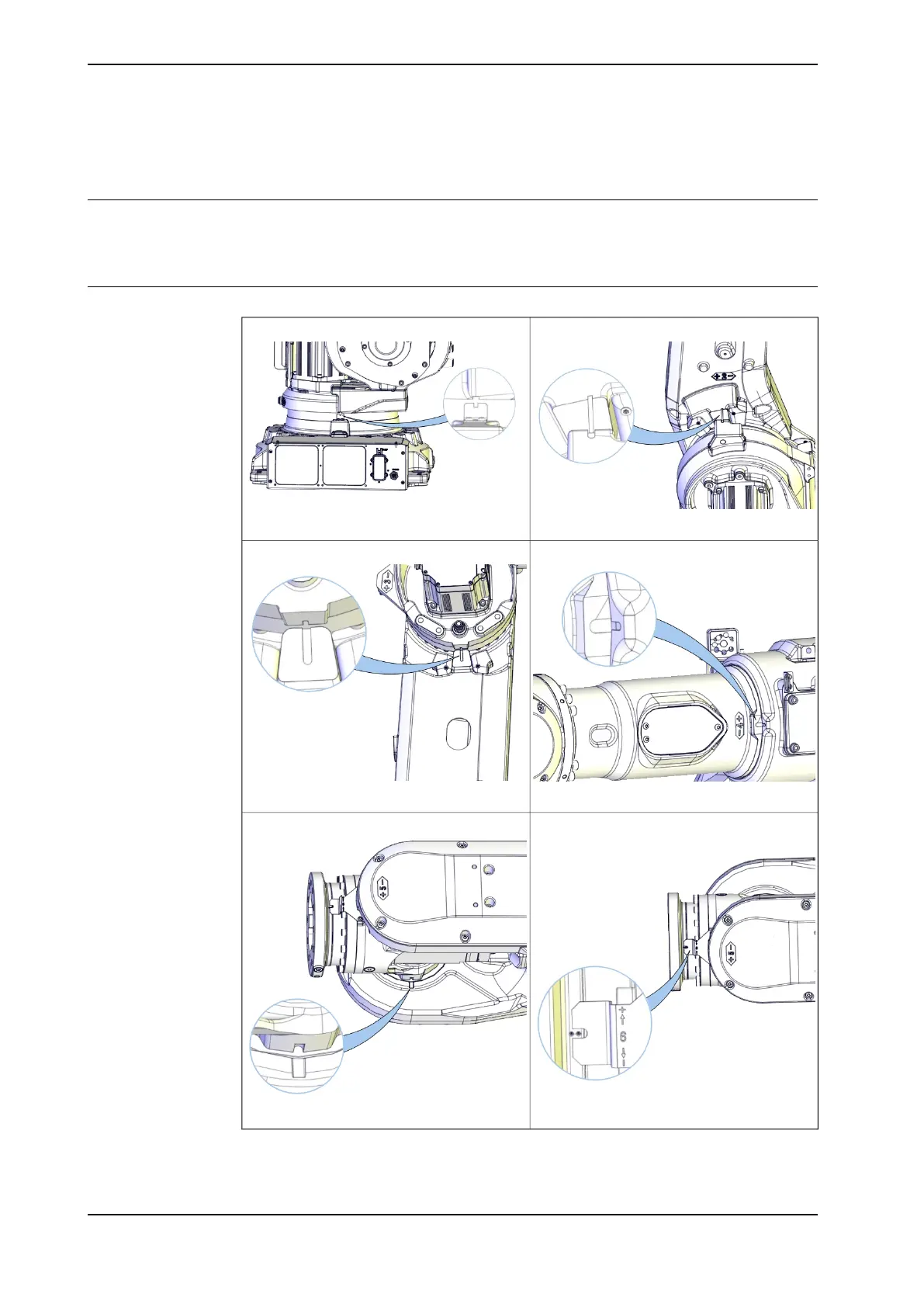

Calibration scales/marks, IRB 6700
Axis 2
xx1300000869
Axis 1
xx1300000868
Axis 4
xx1300000871
Axis 3
xx1300000870
Axis 6
xx1300000873
Axis 5
xx1300000872
