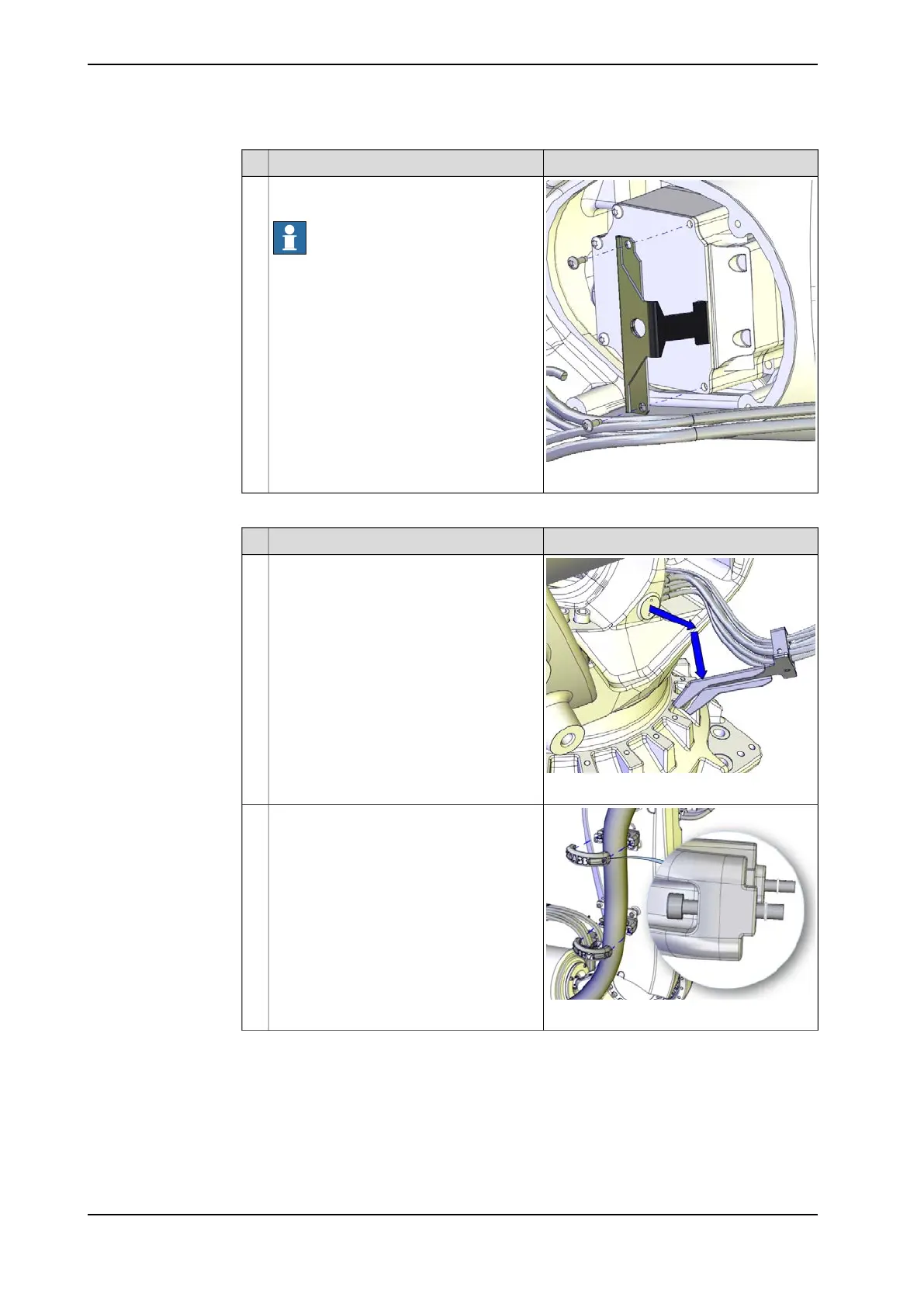

Pull the cable harness to the side and re-
move the heat protection plate.
Note
Keep the heat protection plate somewhere
safe until it shall be refitted.
5
Removing brackets
NoteAction
xx1200001184
Unscrew the screws that hold the bracket
and let it hang free.
1
xx1200000054
Open the ball joint housings on the lower
arm and remove the DressPack, if one is
fitted.
2
Continues on next page
