4.6 Frame and base
4.6.1 Replacing spherical roller bearing, link ear

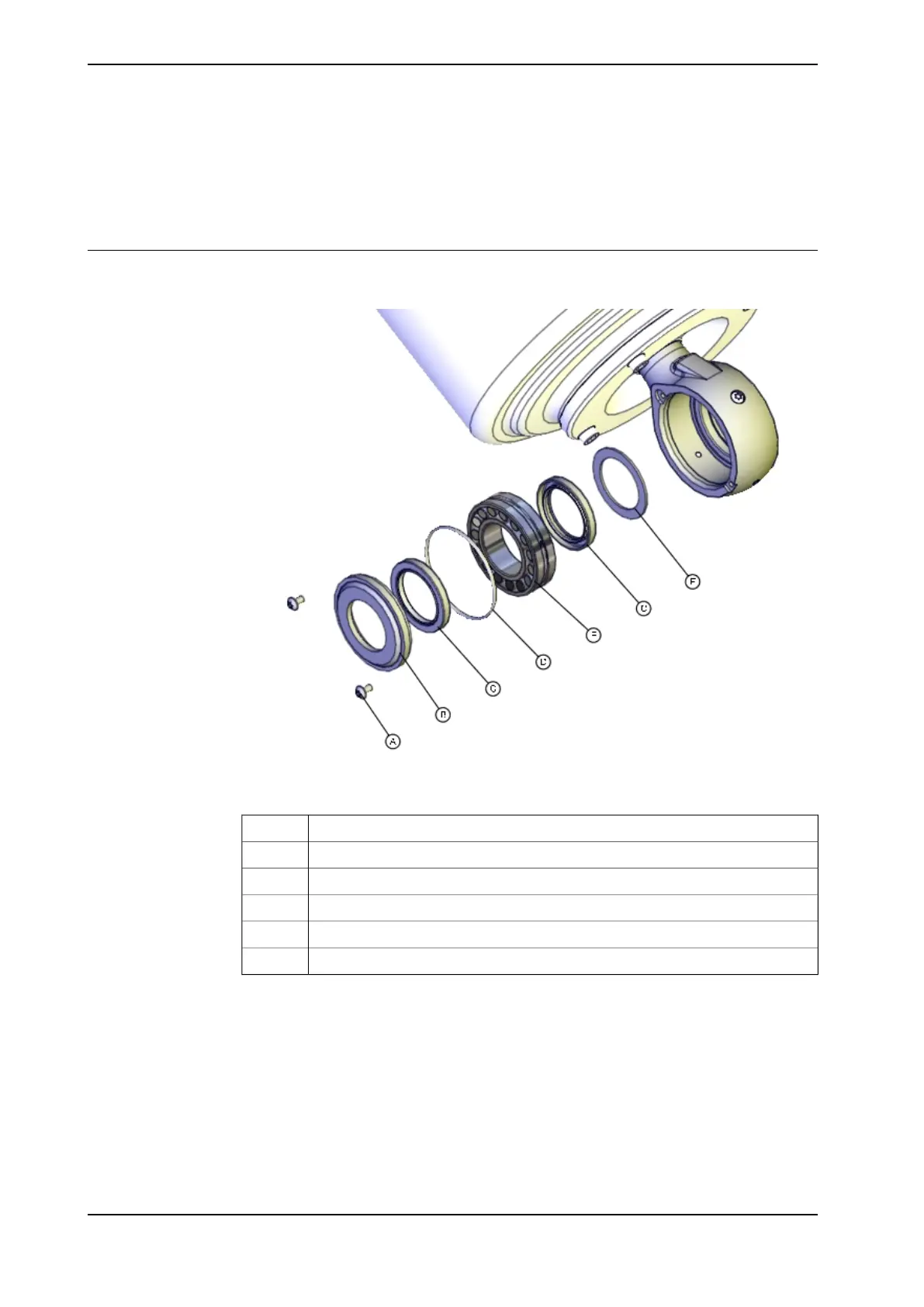

Location of spherical roller bearing
The spherical roller bearing is located in the link ear of the balancing device.
xx1300000773
Attachment screws M6x10 quality 8.8-A2F (2 pcs)A
End coverB
Radial sealing with dustlip, 50x68x8 (2 pcs)C
O-ring 85x3D
Spherical roller bearingE
WasherF
Continues on next page
