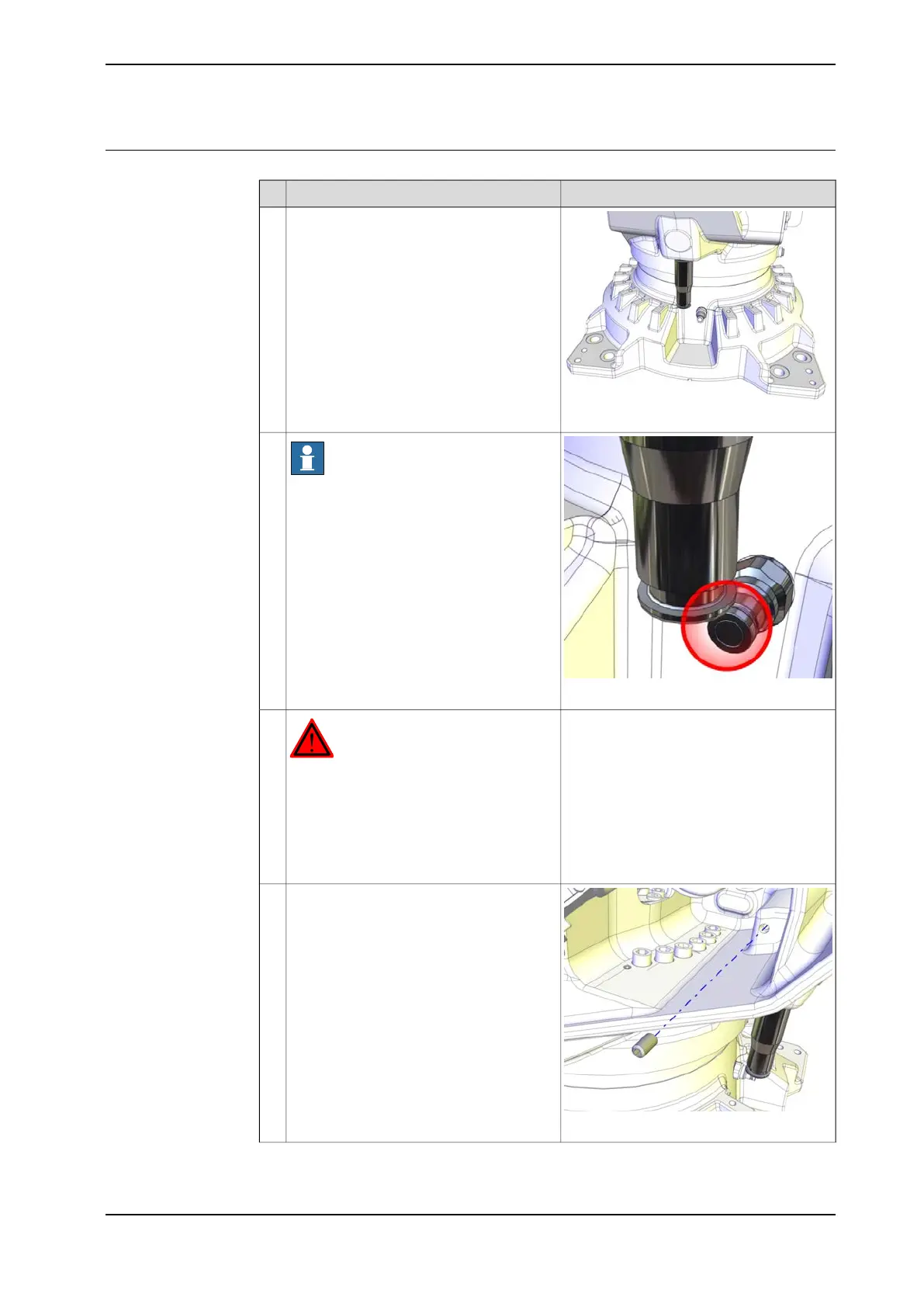

Removing the stop pin
NoteAction
xx1300000479
Jog the robot to this position:
• axis 1 = -5°
1
xx1300000478
Note
If the axis-1 is not in this position the stop
pin will not be able to go free from the axis-
1 oil plug draining, when removed. See
figure!
2
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot
working area.
3
xx1300000476
Unscrew the set screw, cup point.4
