4.8 Gearboxes
4.8.1 Replacing the axis-1 gearbox

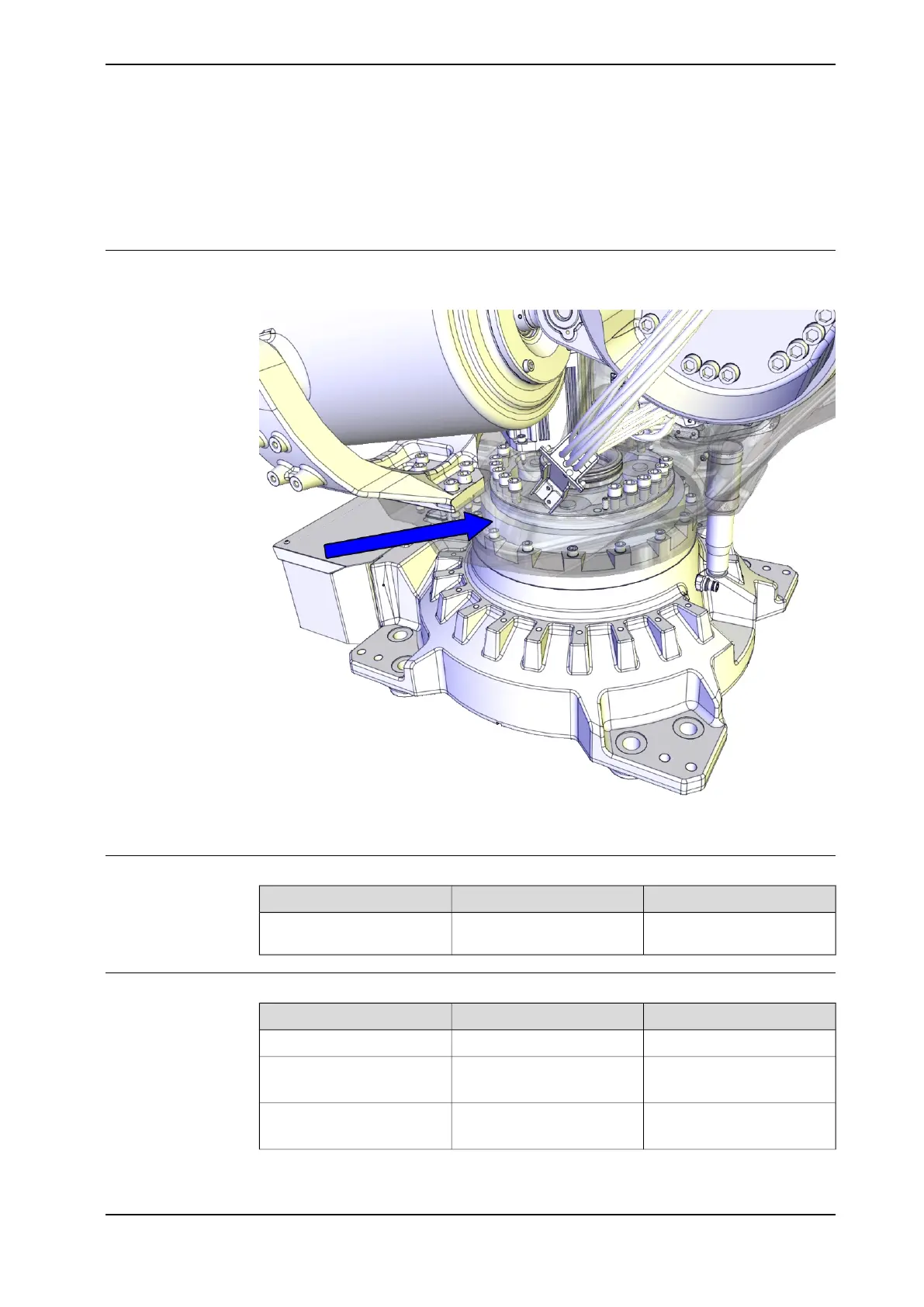

Location of the axis-1 gearbox
The axis-1 gearbox is located as shown in the figure.
xx1200001183
Spare parts
NoteArticle numberSpare parts
See Product manual, spare
parts - IRB 6700.
Axis-1 gearbox
Consumables
NoteArticle numberEquipment, etc
Used to lubricate o-rings.3HAB3537-1Grease
D=380.59x3.533HAB3772-93O-ring
Used on gearbox
D=169.5x33HAB3772-111O-ring
Used on motor cover.
Continues on next page
3HAC044266-001 Revision: - 449
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.8.1 Replacing the axis-1 gearbox
