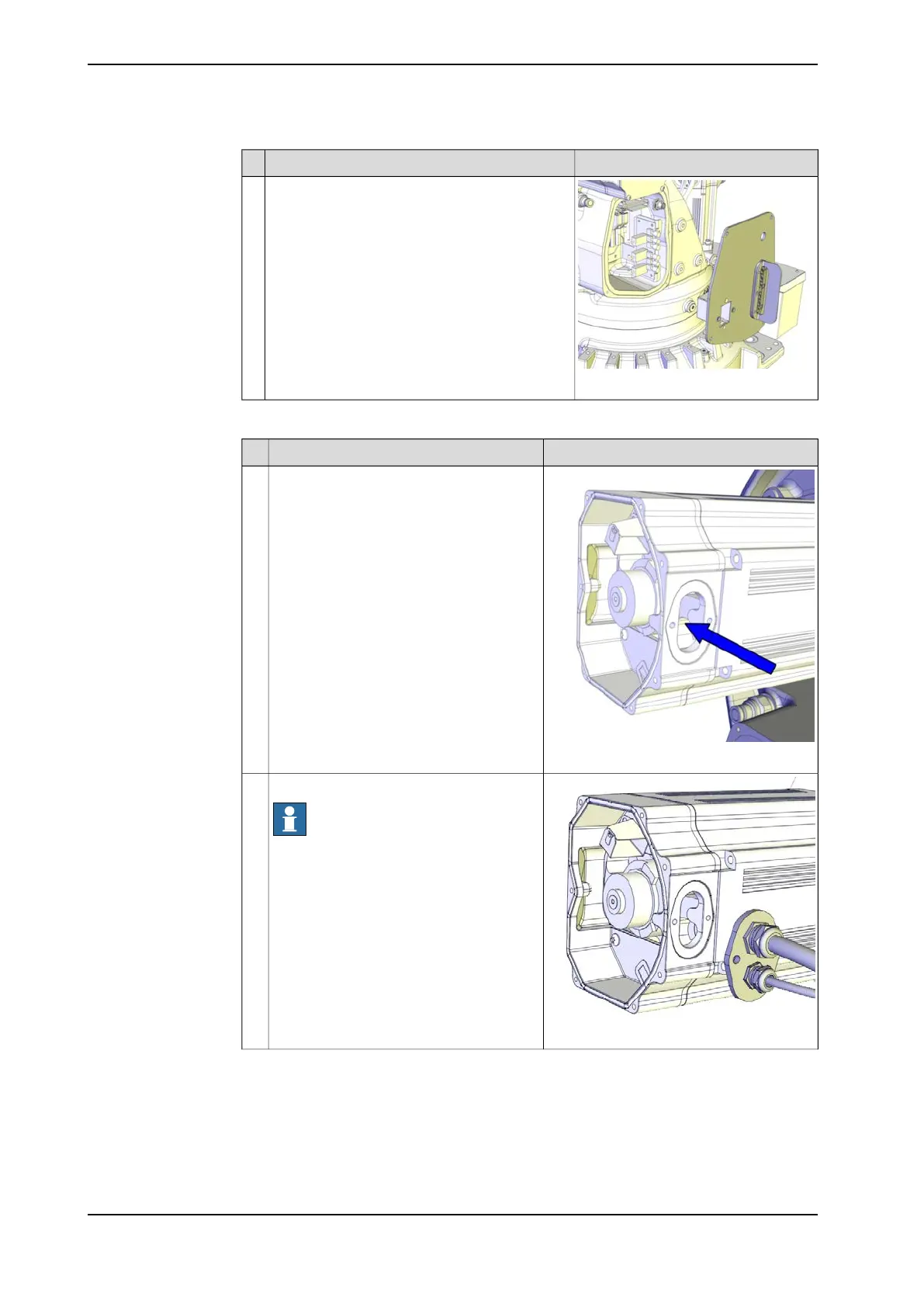

Secure the SMB cover with its attachment
screws.
8
Reconnecting the axis-1 and axis-2 motor cables
NoteAction
xx1300000738
Push the motor cables in through the cable
gland opening.
1
xx1200001067
Refit the cable gland cover.
Note
Replace the gasket if damaged!
2
Continues on next page
