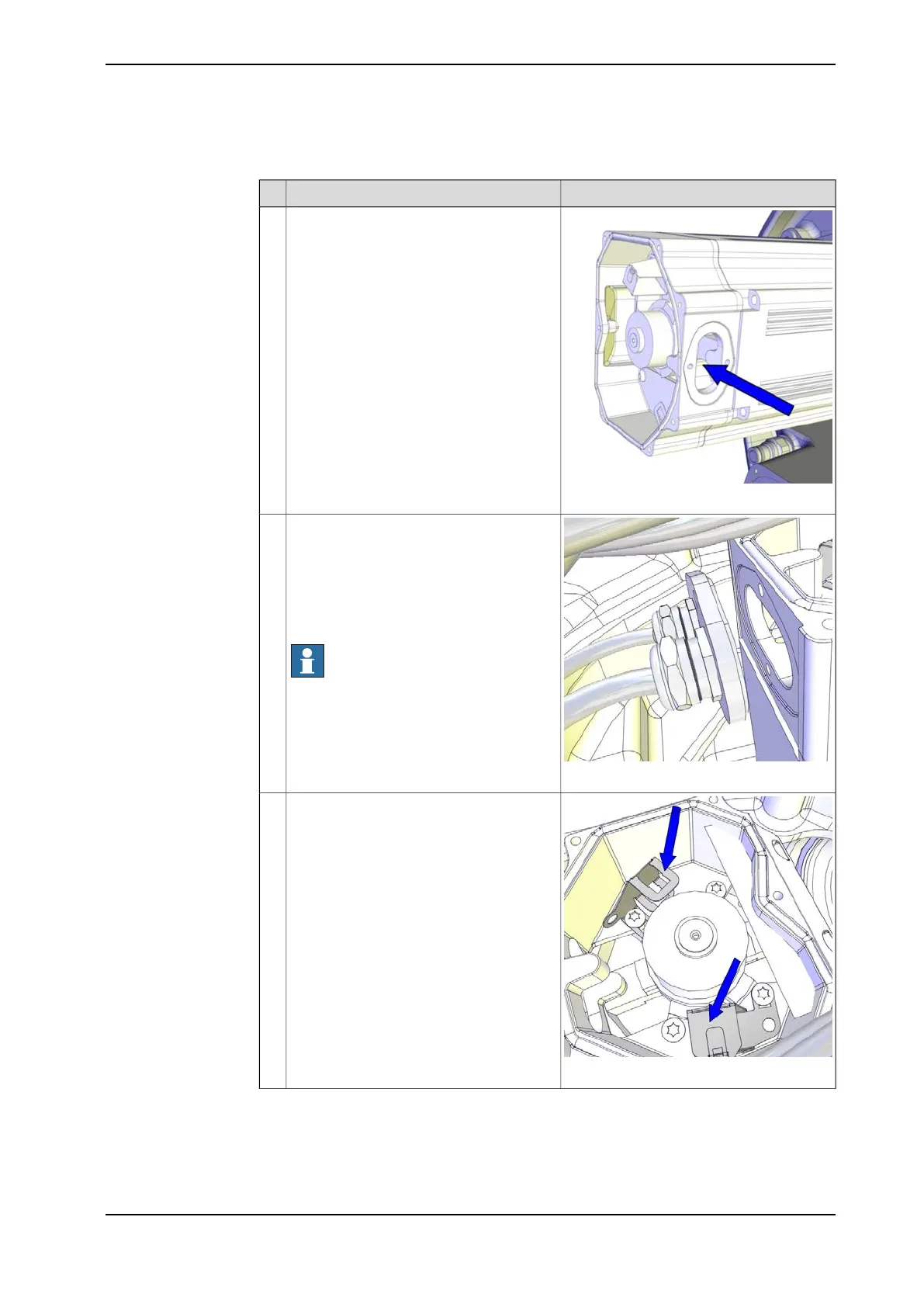

Connecting the axis-5 motor cables
NoteAction
xx1300000738
Push the motor cables in through the cable
gland opening.
1
xx1200001016
Refit the cable gland cover by performing
the following steps:
• Slide the cable gland cover onto the
inner screw.
• Refit and tighten the outer screw.
• Tighten the inner screw. Make sure
that the gasket is not damaged.
Note
Replace the gasket if damaged!
2
xx1200001015
Connect the connectors.
Connect in accordance with the markings
on the connectors.
3
Continues on next page
3HAC044266-001 Revision: - 229
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Refitting the cable harness
Continued
