NoteAction
O-ring, axis-5, 3HAB3772-110
xx1200001021

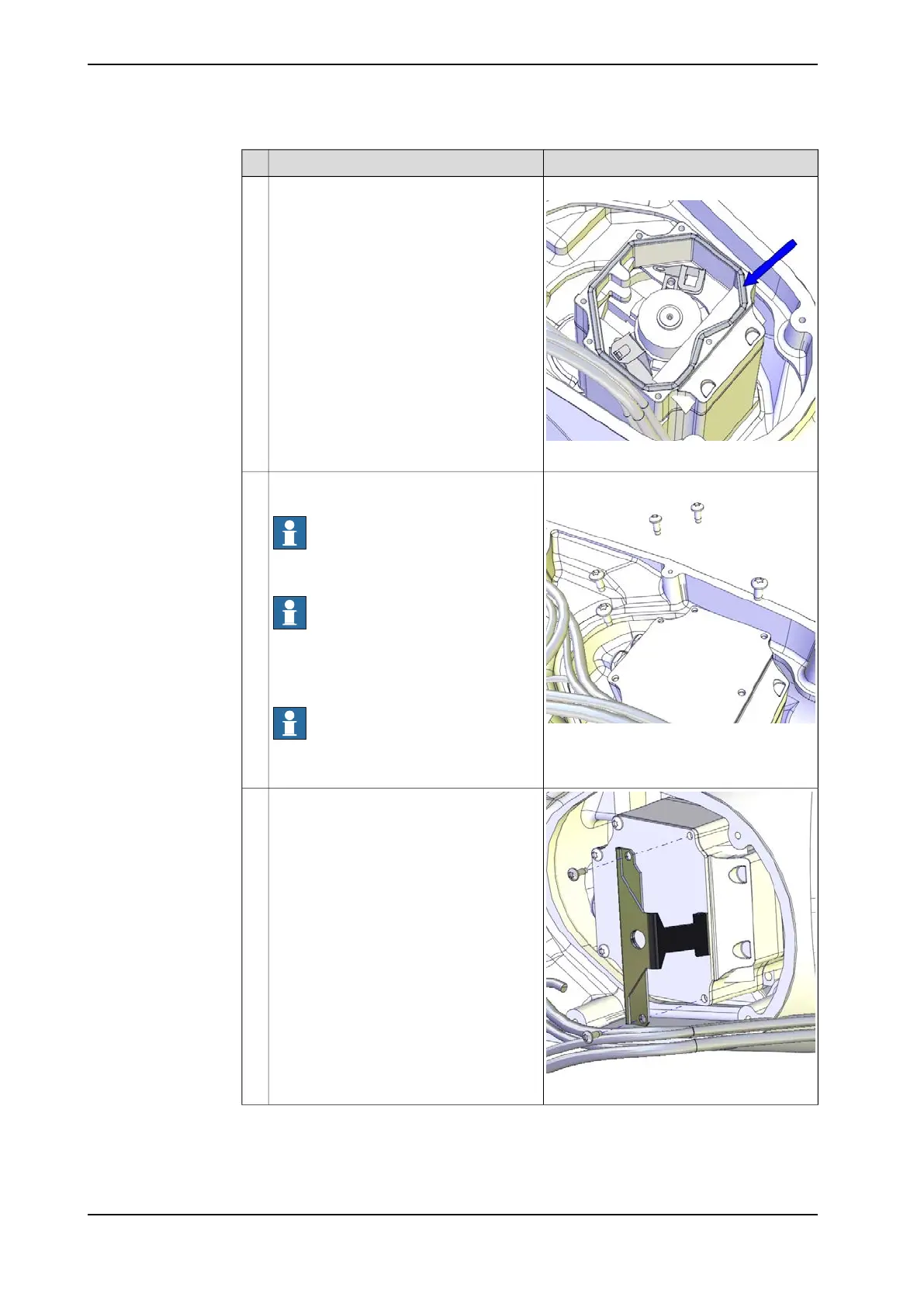

Check the o-ring on the motor.
Replace if damaged!
4
xx1200001013
Refit the motor cover with its attachment
screws.
Note
Do not refit the screws that will hold the
heat protection plate at this point.
Note
Do not reuse the self-threading attachment
screws! Replace with standard attachment
screws. The threads will otherwise be
damaged.
Note
Make sure the o-ring is undamaged and
properly fitted!
5
xx1300000490
Fit the heat protection plate with the re-
maing screws.
