ABB IRB 6700 - Illustration, Working Range IRB 6700 - 205;2.80; Illustration, Working Range IRB 6700 - 235;2.65

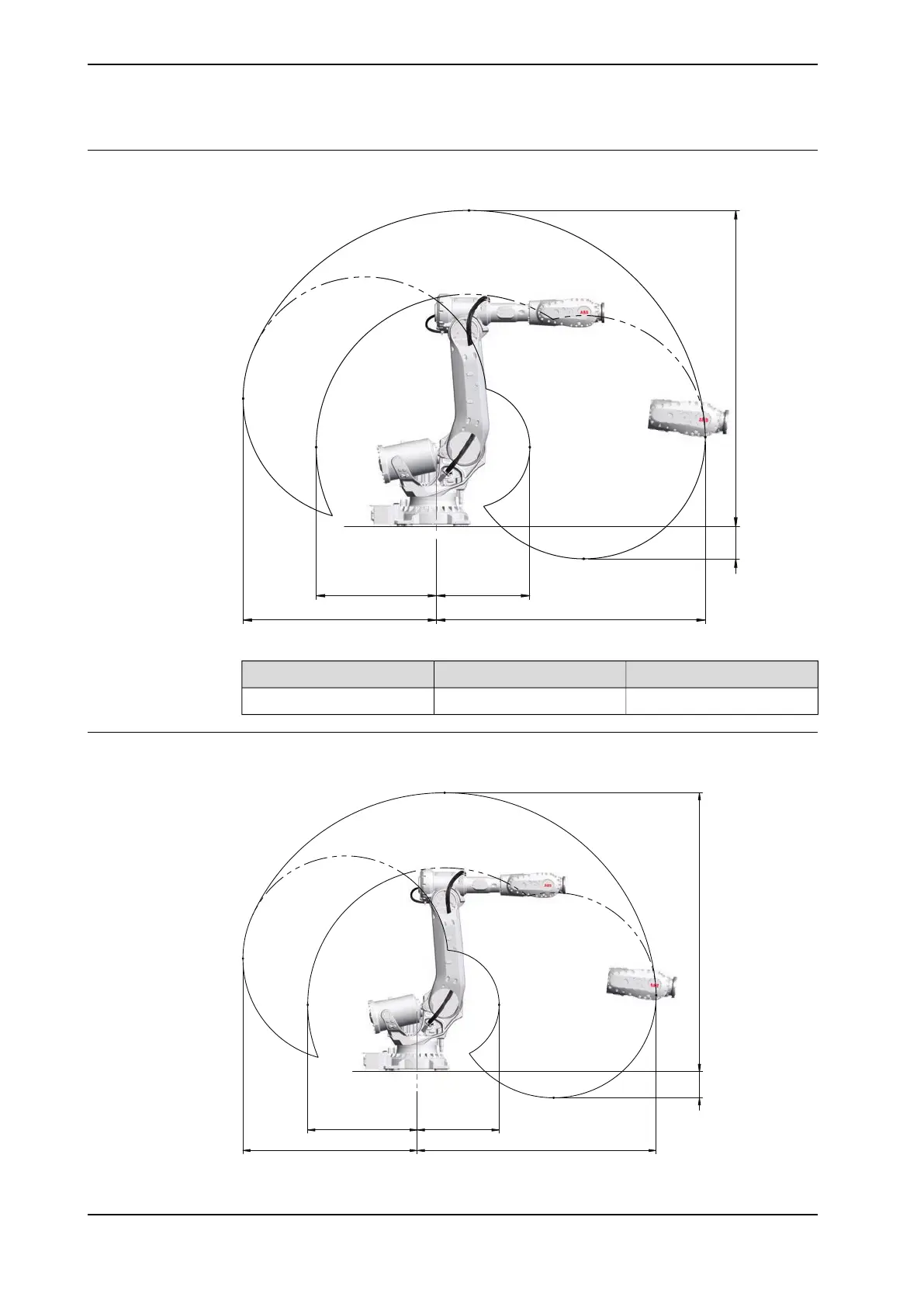

Illustration, working range IRB 6700 - 235/2.65
This illustration shows the unrestricted working range of the robot.
1187 920
1908 2650
3114 320
xx1300000281
Reach (m)Handling capacity (kg)Robot type
2.65235IRB 6700
Illustration, working range IRB 6700 - 205/2.80
This illustration shows the unrestricted working range of the robot.
308 3259
1281
2039
958
2794
xx1300000282
Continues on next page
56 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
2 Installation and commissioning
2.2.2 Working range
Continued
