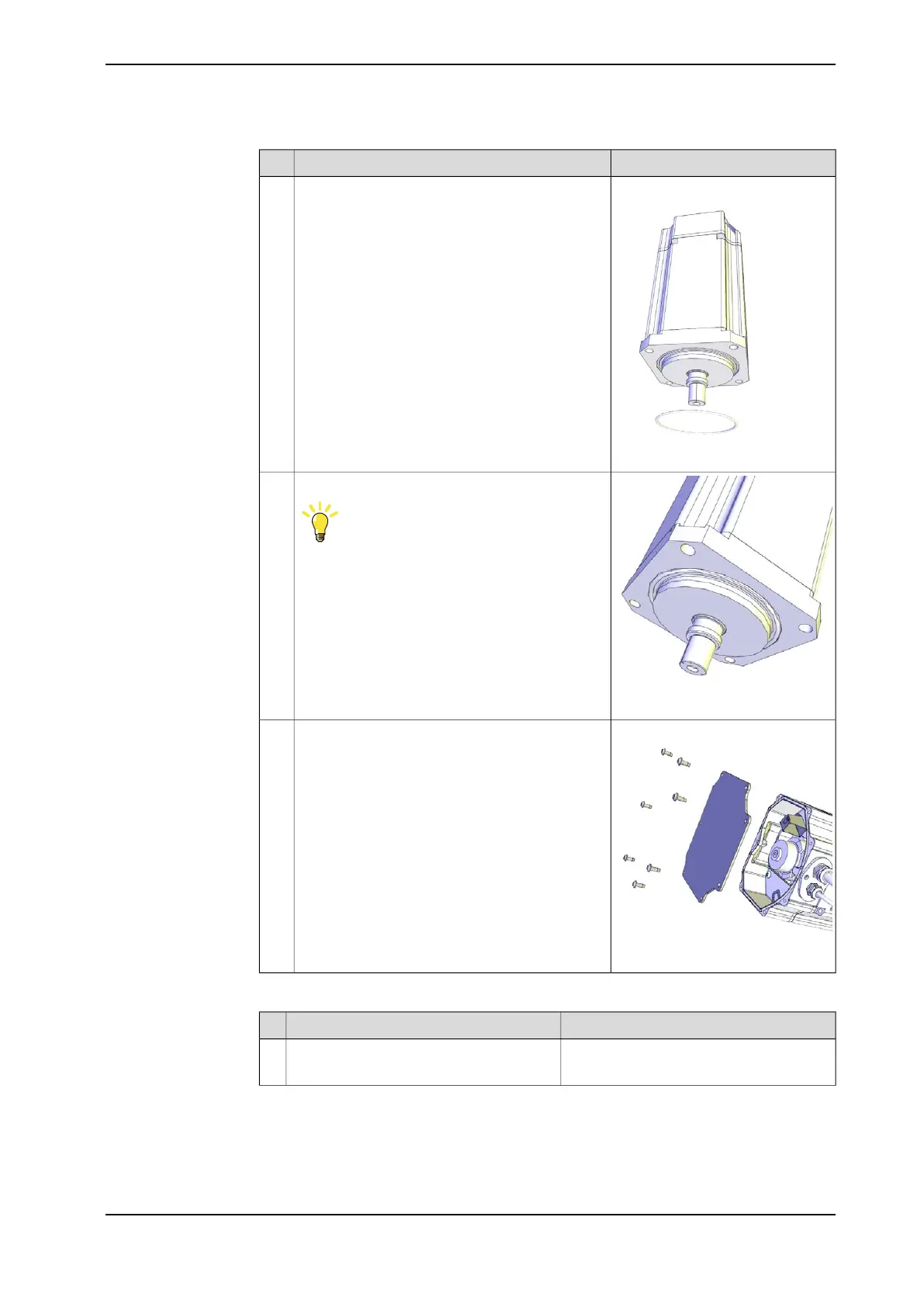

NoteAction
O-ring, 3HAB3772-107
xx1200001019
Check the o-ring.
Replace if damaged!
4
xx1200001020
Make sure the o-ring is seated in the groove.
Tip
Lubricate the o-ring with some grease for a better
fitting in the groove.
5
xx1200001135
Remove the cover, if the motor is a new spare
part.
6
Securing the axis-1 motor
NoteAction
Guide pin, M12x150: 3HAC13056-2Fit guide pins in opposite holes.1
Always use guide pins in pairs!
Continues on next page
3HAC044266-001 Revision: - 391
