NoteAction
xx1300000544

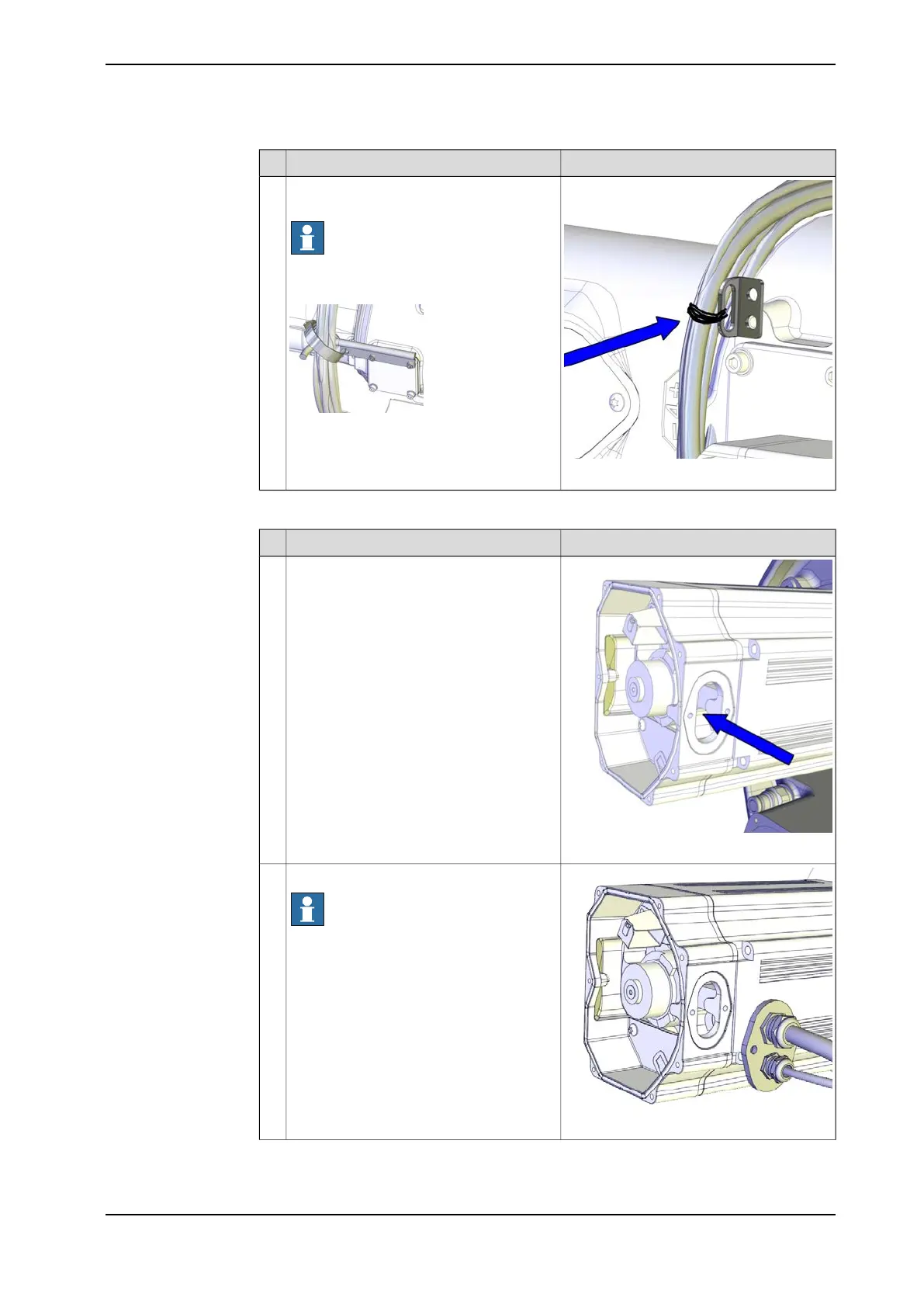

Secure the cable harness to the cable fixing
bracket with the velcro strap.
Note
If DressPack is fitted, the cable fixing
bracket is replaced by the cable guide.
xx1300001973
15
Connecting the axis-3 and axis-4 motor cables
NoteAction
xx1300000738
Push the motor cables in through the cable
gland opening.
1
xx1200001067
Refit the cable gland cover.
Note
Replace the gasket if damaged!
2
Continues on next page
3HAC044266-001 Revision: - 227
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Refitting the cable harness
Continued
