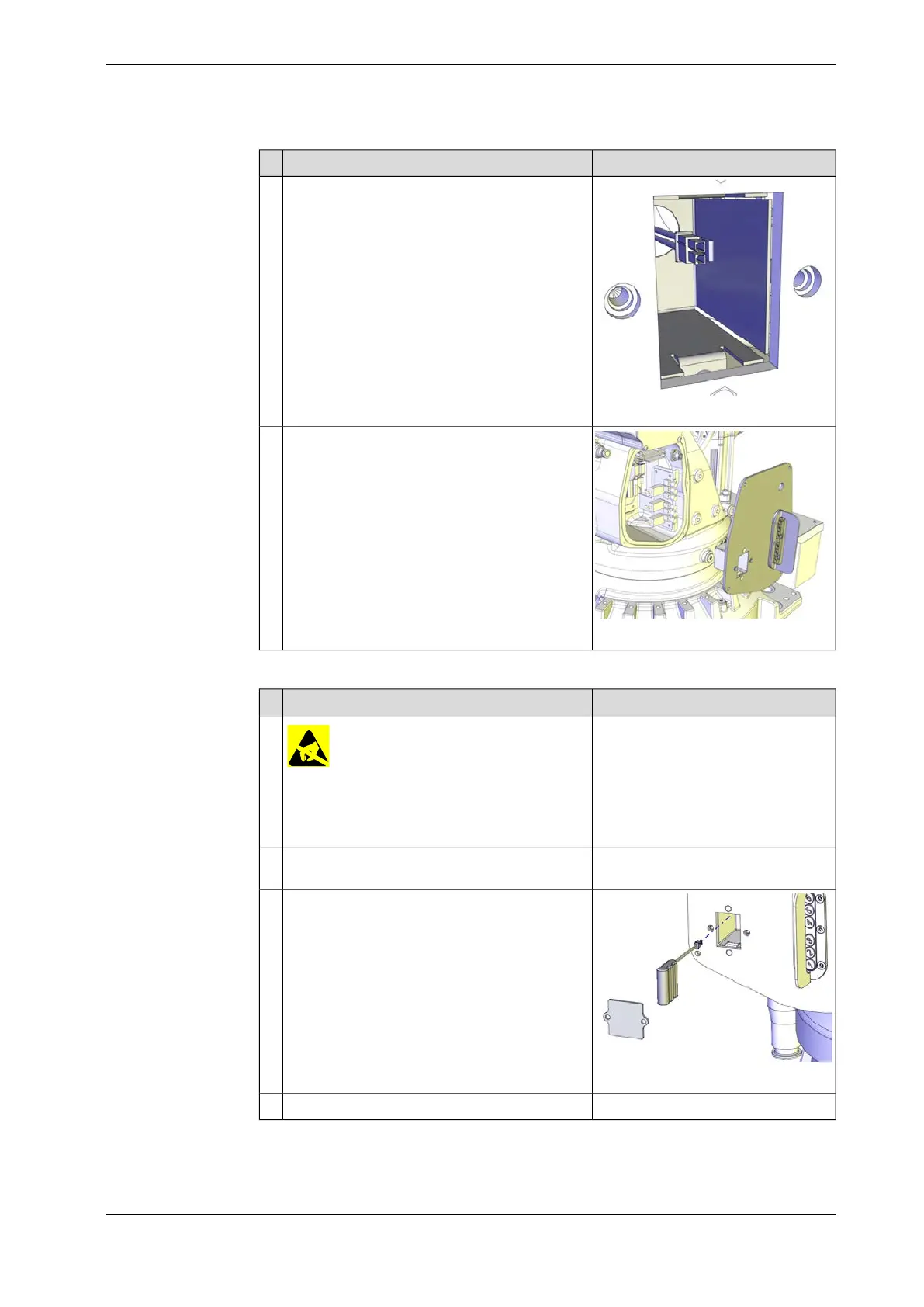

NoteAction
xx1300000834
Pull out the battery cable through the recess for
the battery.
7
xx1300000669
Secure the SMB cover with its attachment
screws.
8
Refitting the SMB battery
NoteAction
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the
unit please read the safety information in the
section WARNING - The unit is sensitive to ESD!
on page 47
1
Get a hold of the battery cable in the recess for
the battery and reconnect.
2
xx1300000829
Place the battery in the recess.3
Refit the battery cover.4
Continues on next page
3HAC044266-001 Revision: - 239
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.3 Replacing the SMB
Continued
