3.3.12 Inspecting the fork lift device set
Location of fork lift device set

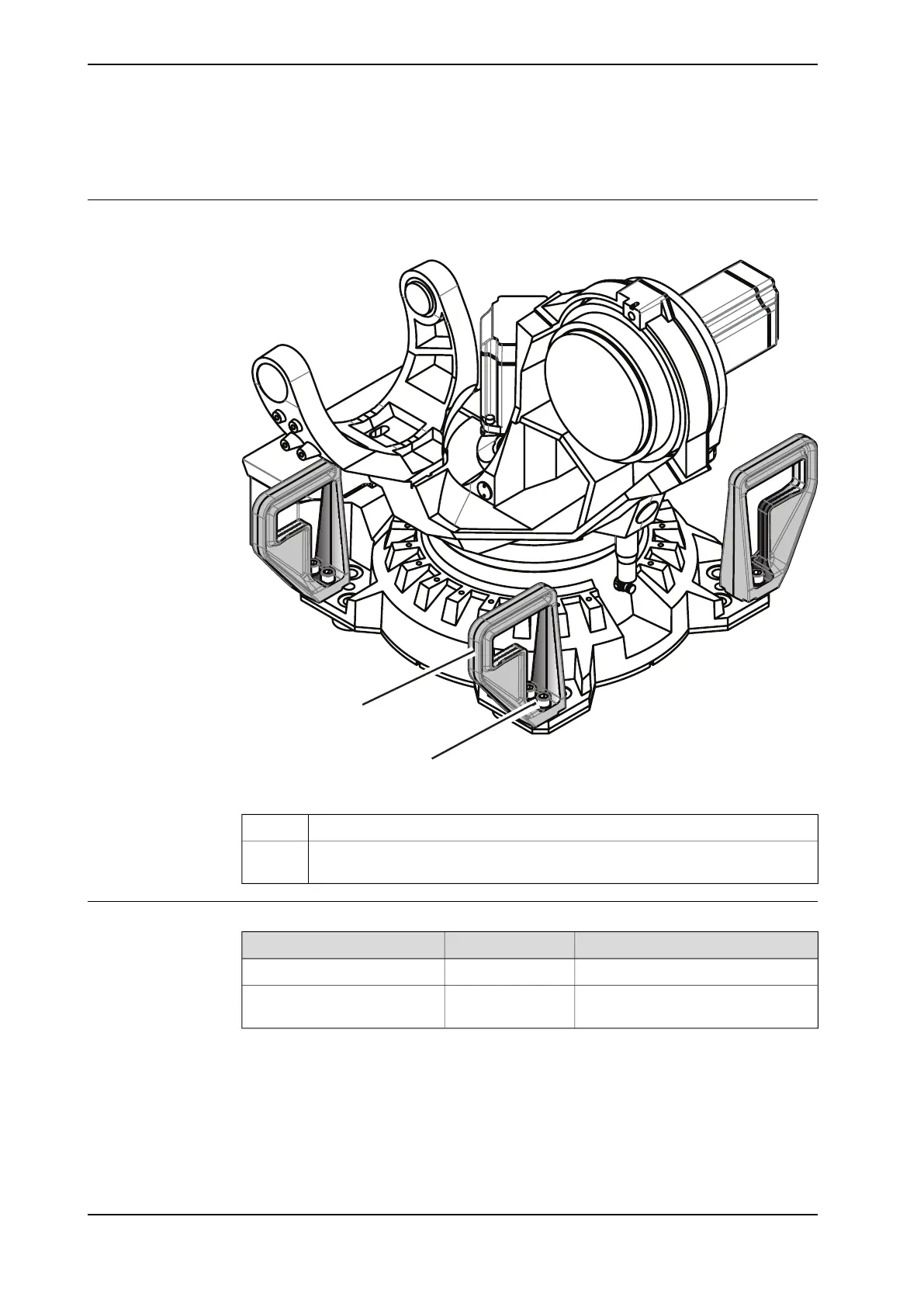

The fork lift device set is fitted to the robot as shown in the figure.
A
B
xx1300001602
Fork lift device (4 pcs)A
Hex socket head cap screw M20x60 quality steel 8.8-A3F (2 pcs per fork lift
device)
B
Required equipment
NoteArt. no.Equipment
3HAC047054-002Fork lift device set
Content is defined in section Standard
toolkit on page 559.
-Standard toolkit
Continues on next page
132 3HAC044266-001 Revision: -
