3.3.13 Inspecting the dampers
Location of dampers

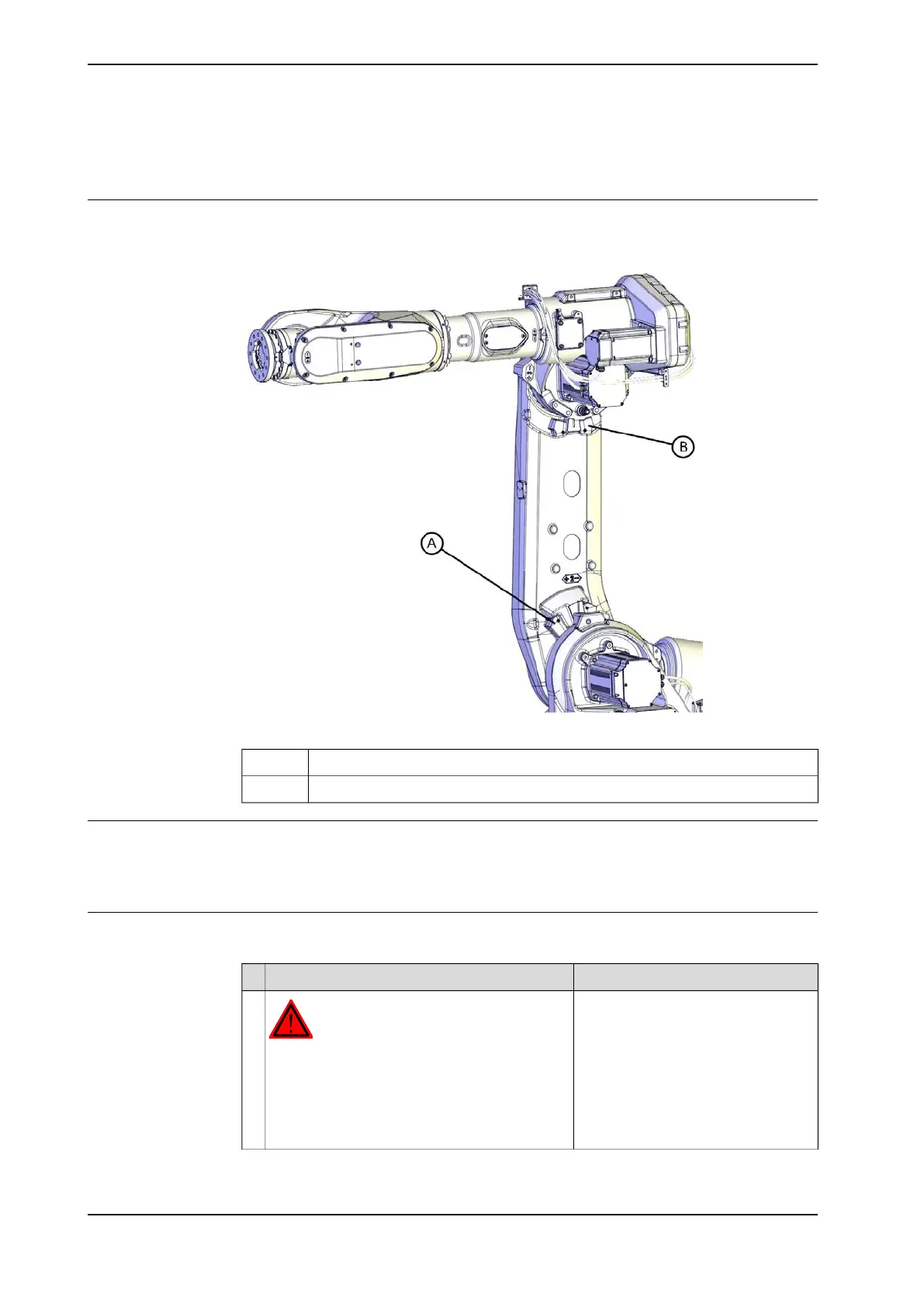

The figure below shows the location of all the dampers to be inspected.
xx1300000414
Axis-2 damper, 2 pcsA
Axis-3 damper, 2 pcsB
Required equipment
Visual inspection, no tools are required.
A damper must be replaced if damaged!
Inspecting, dampers
The procedure below details how to inspect the dampers.
NoteAction
DANGER
Turn off all:
• electric power supply to the robot
• hydraulic pressure supply to the robot
• air pressure supply to the robot
Before entering the robot working area.
1
Continues on next page
134 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
