ABB IRB 6700 - Main Dimensions; Dimensions for Different Robot Variants

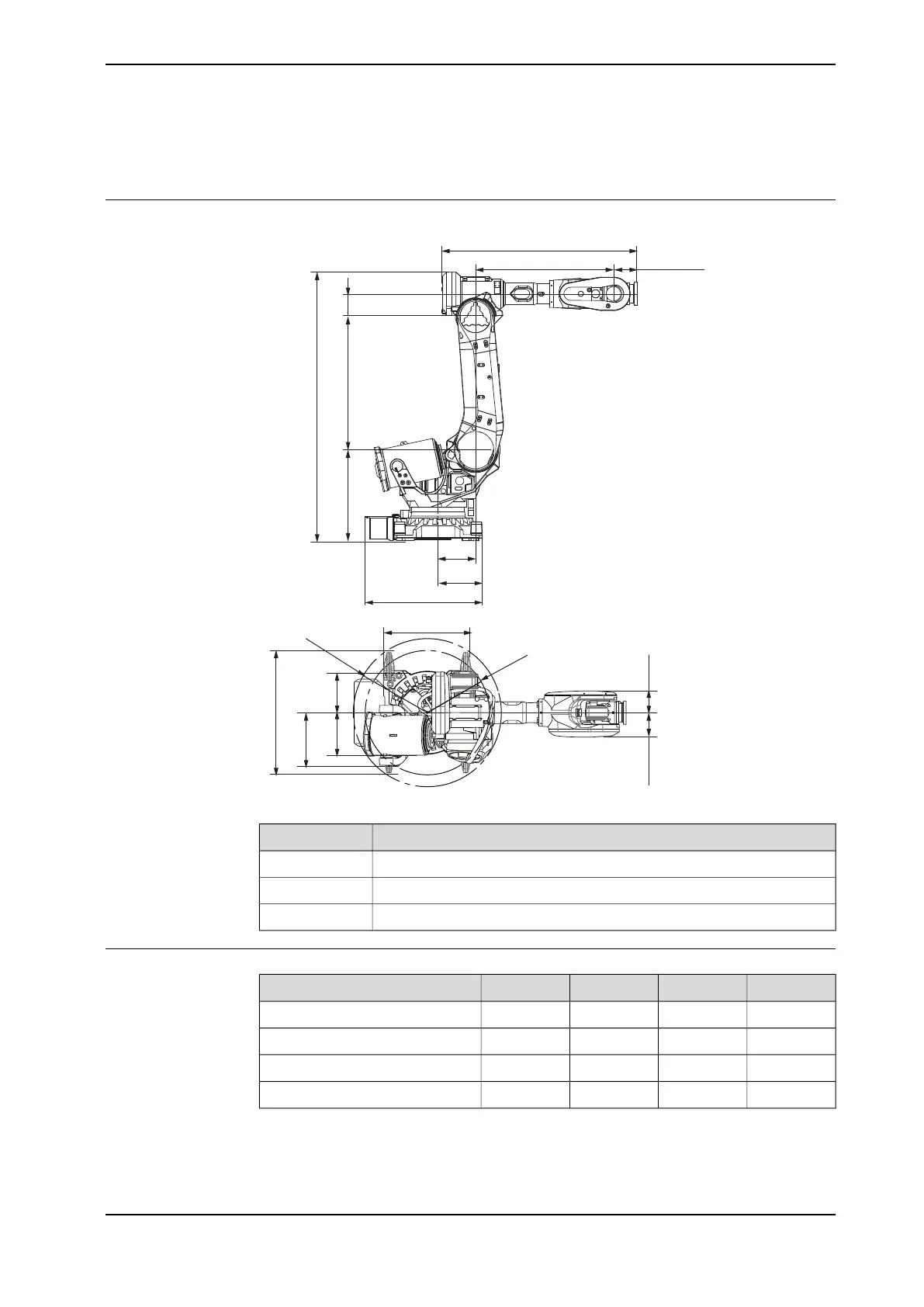

2.2.4 Main dimensions
Illustration
(C)
(B)
1029
360
360
745
186
209
320
377
1004
780
200
200 (A)
(D)
(E)
(F)
(G)
456
xx1300000241
DescriptionPos
350 mm for LeanID (option 780-4)A
Radius = 532 mm (axis 1 front side)B
Radius = 634 mm (axis 1 back side)C
Dimensions for different robot variants
GFEDRobot variant
1182.5167011352300IRB 6700 - 235/2.65
1182.5167012802445IRB 6700 - 205/2.80
1592.5208011352300IRB 6700 - 175/3.05
1592.5208012802445IRB 6700 - 150/3.20
