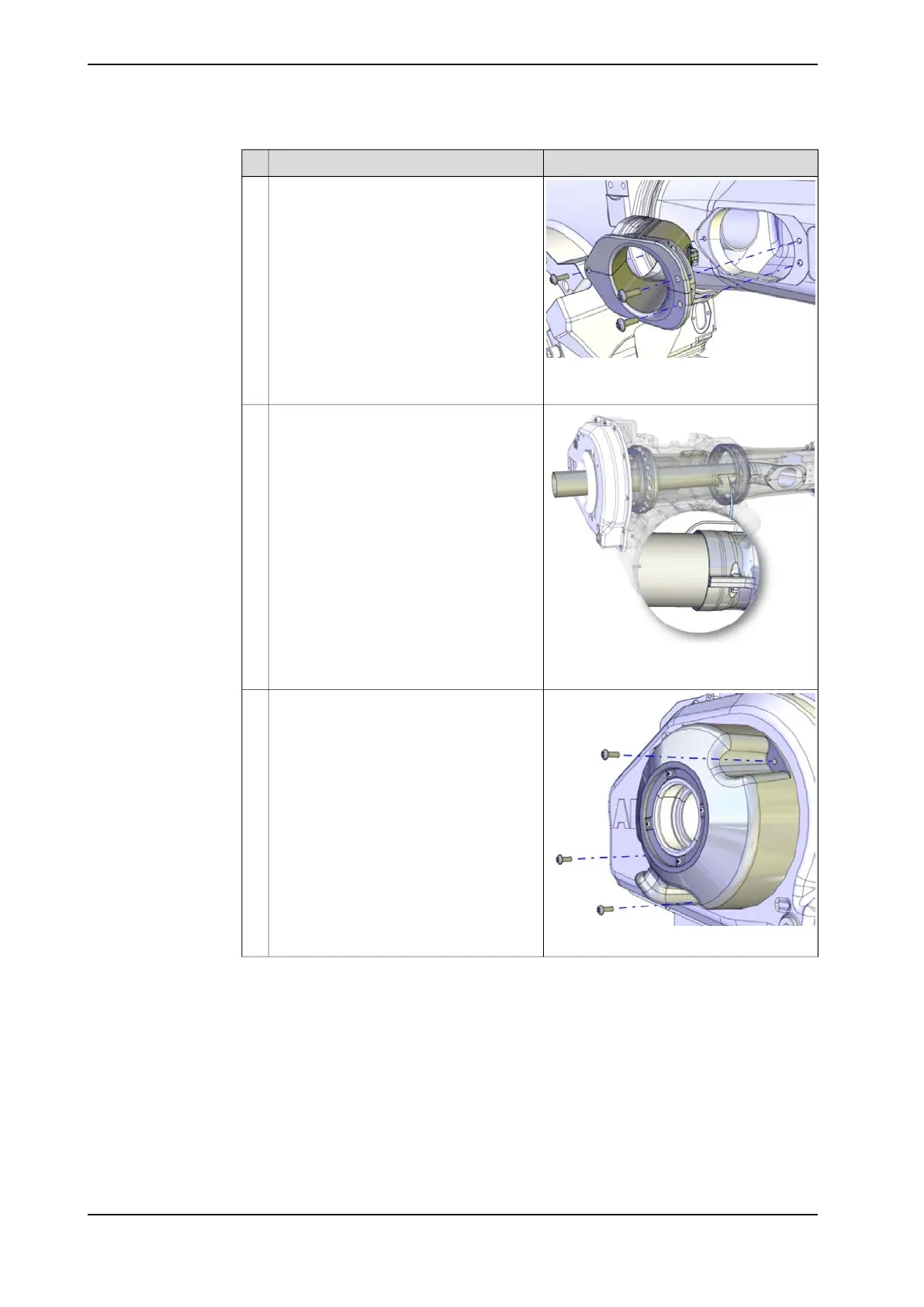

NoteAction
xx1200000042
If used, refit the insert that guides the
DressPack cable package through the hole
in the upper arm.
12
The figure show IRB 6640.
xx1300000658
If used, refit the tube containing the
DressPack into the insert.
13
The figure show IRB 6640.
xx1200000045
If used, refit the cover with the tube guiding
ring fitted.
14
Continues on next page
226 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Refitting the cable harness
Continued
