NoteAction
xx1200001235

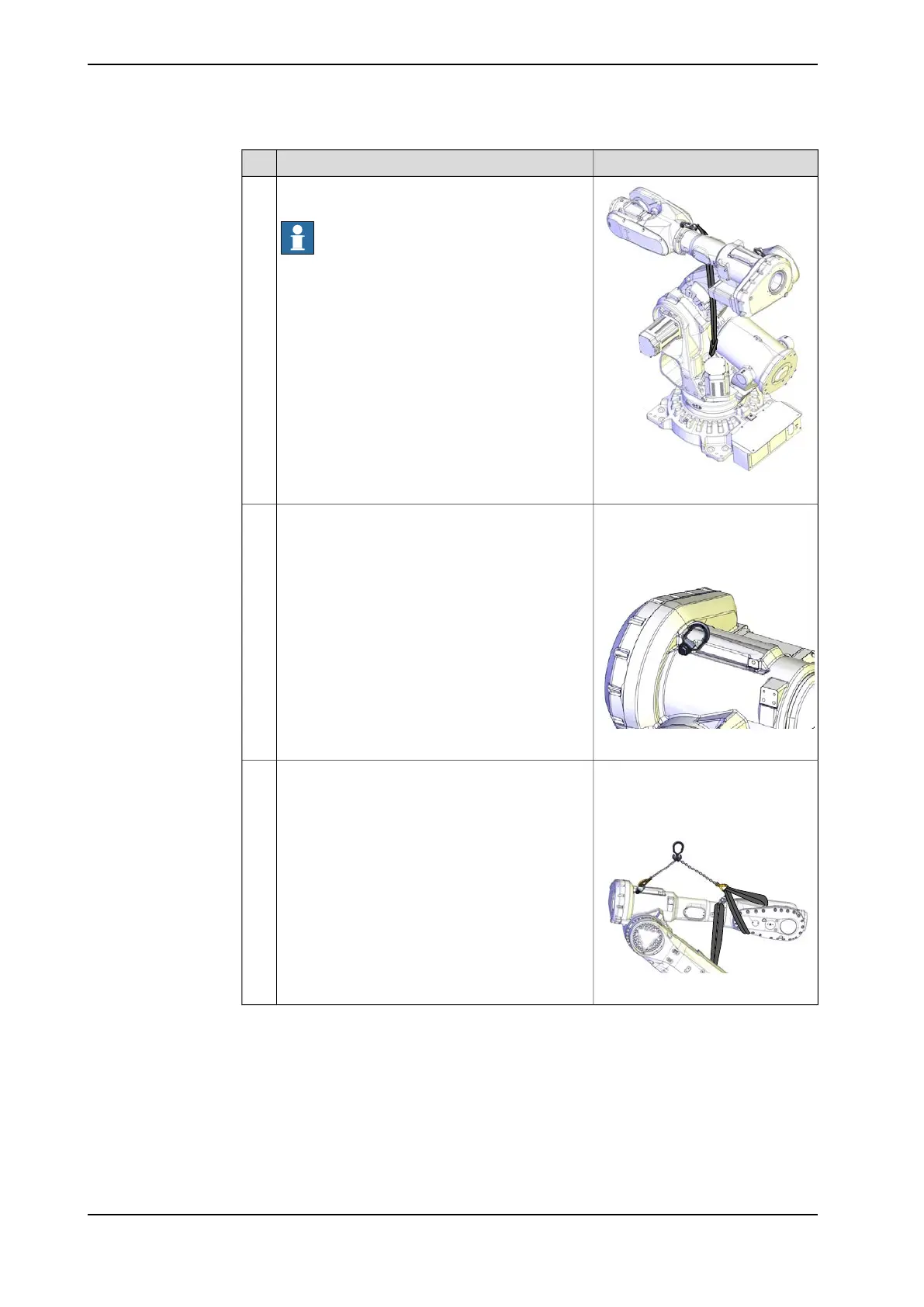

Attach the roundsling to the shackle on the wrist
and jog axis-3 slowly to stretch the roundsling.
Note
Make sure the roundsling is stretched, so it can
carry the weight of the frame.
6
Lifting eye: 3HAC16131-1Fit a lifting eye in the arm house, with a fender
washer underneath.
7
Fender washer. Outer diameter:
minimum 26 mm, hole diameter:
13 mm, thickness: 3 mm.
xx1200001134
Lifting accessory (chain):
3HAC15556-1
Attach the upper arm lifting accessory to an
overhead crane (or similar) and then to the lifting
eye in the arm house and to a roundsling run
through the wrist.
8
Roundsling, 1 m: Length: 1 m. Lift-
ing capacity: 1,000 kg.
xx1200001236
182 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.3.1 Arm system (including the frame)
Continued
