NoteAction
Lifting eye: 3HAC16131-1
xx1200001133

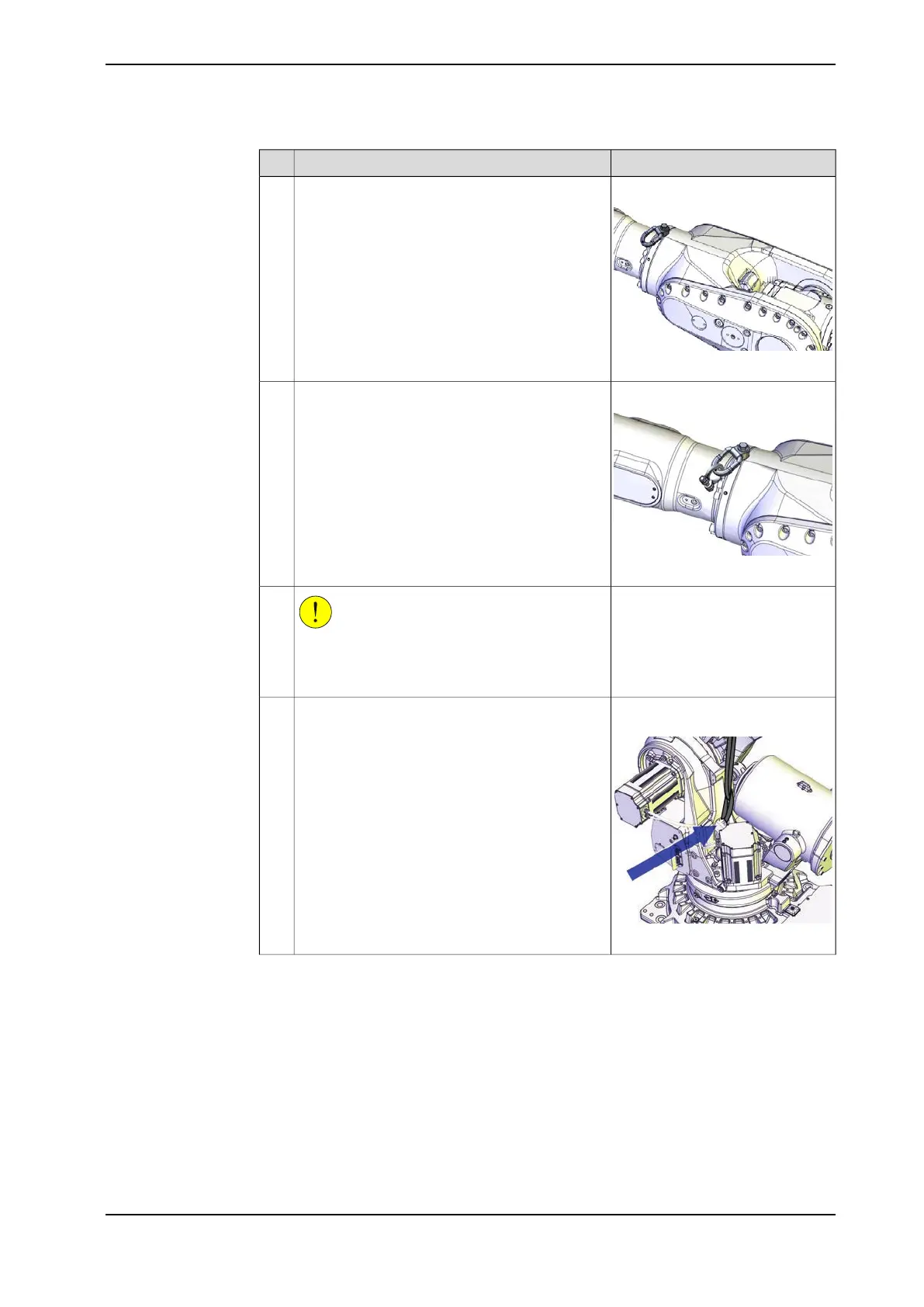

Fit a lifting eye to the wrist.2
Lifting shackle: SA-10-8-NA1
xx1200001234
Fit a lifting shackle in the wrist lifting eye.3
CAUTION
The complete arm system weigh 1100 kg.
All lifting accessories used must be sized accord-
ingly!
4
Roundsling, 1.5 m: Length: 1.5 m.
Lifting capacity: 1,000 kg.
xx1200001209
Run a roundsling through the hole in the frame.5
Continues on next page
3HAC044266-001 Revision: - 181
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.3.1 Arm system (including the frame)
Continued
