NoteAction
xx1200001237

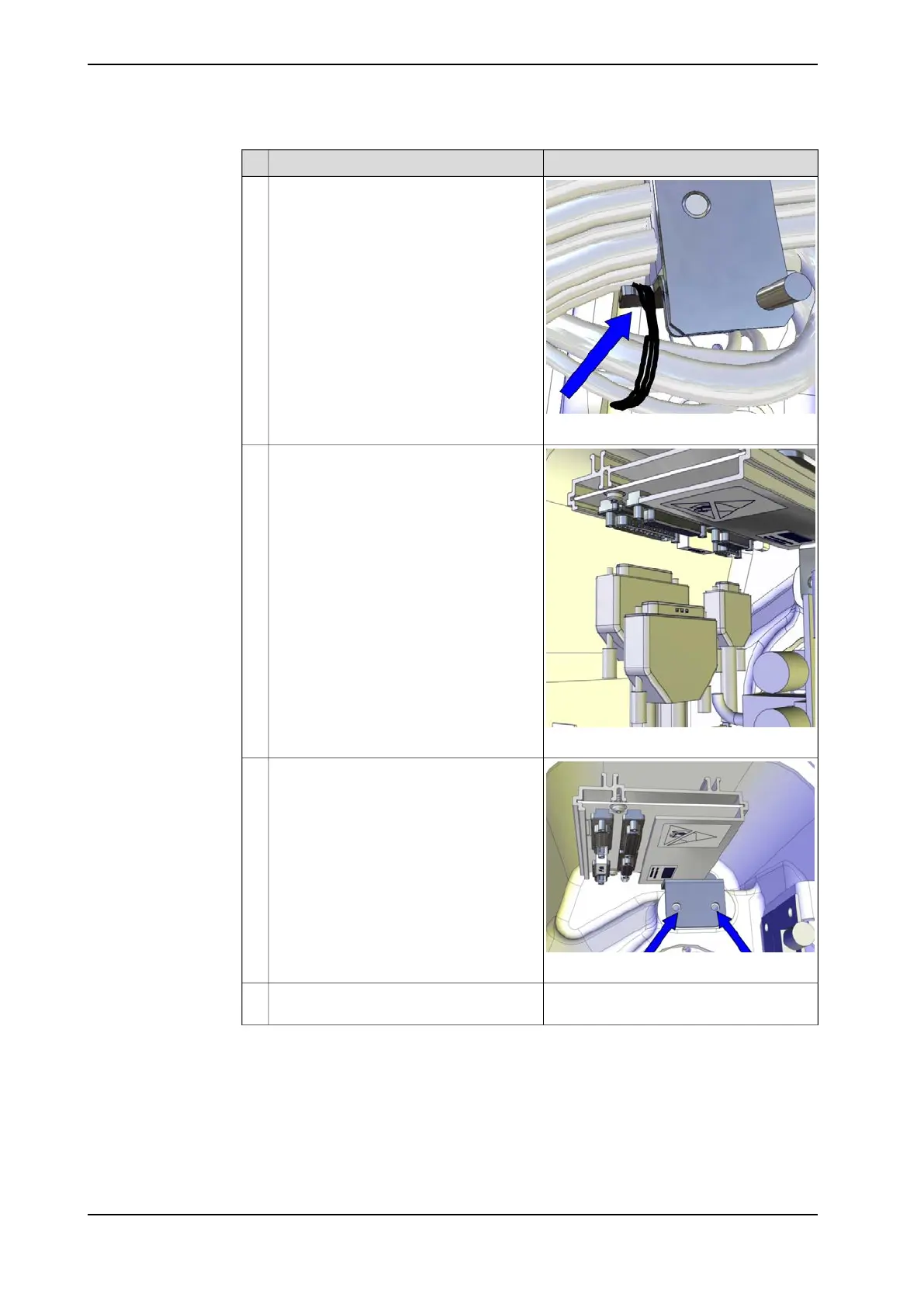

Cut the cable tie inside the hole in the
frame.
5
xx1300001114
Disconnect connectors on the SMB unit.6
xx1300000730
Unscrew the screws and washers that
holds the bracket with the SMB unit, and
remove the SMB unit.
7
Put the SMB unit in an ESD bag until it shall
be refitted.
8
Continues on next page
208 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.1 Removing the cable harness
