NoteAction
xx1200000954

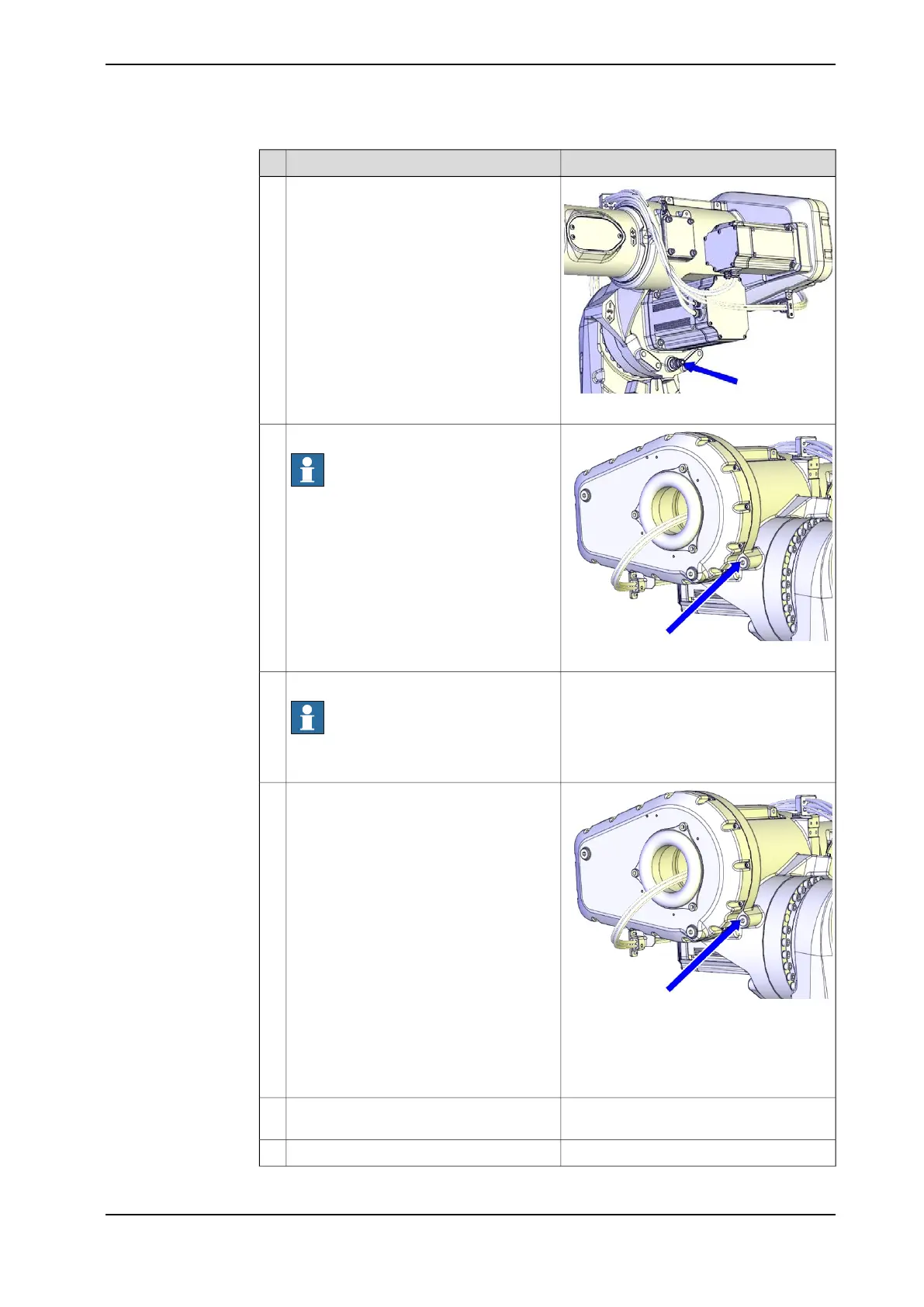

Remove the protective cap from the nipple
of the oil hole and connect the oil dis-
penser.
4
xx1200000955
Remove the plug from the vent hole.
Note
The vent hole is opened to let out air during
the filling process.
5
Type of oil and total amount is detailed in
Technical reference manual - Lubrication
in gearboxes.
Refill the gearbox with oil.
Note
The amount of oil to be filled depends on
the amount previously being drained.
6
xx1200000955
Inspect the oil level at the vent hole (level
plug).
7
Required oil level is: 0 - 10 mm below the
oil plug hole.
More information is found in Inspecting the
oil level in axis-3 gearbox on page 109.
Remove the oil dispenser and refit the
protective cap to the nipple.
8
Tightening torque: 24 NmRefit the level plug.9
