NoteAction

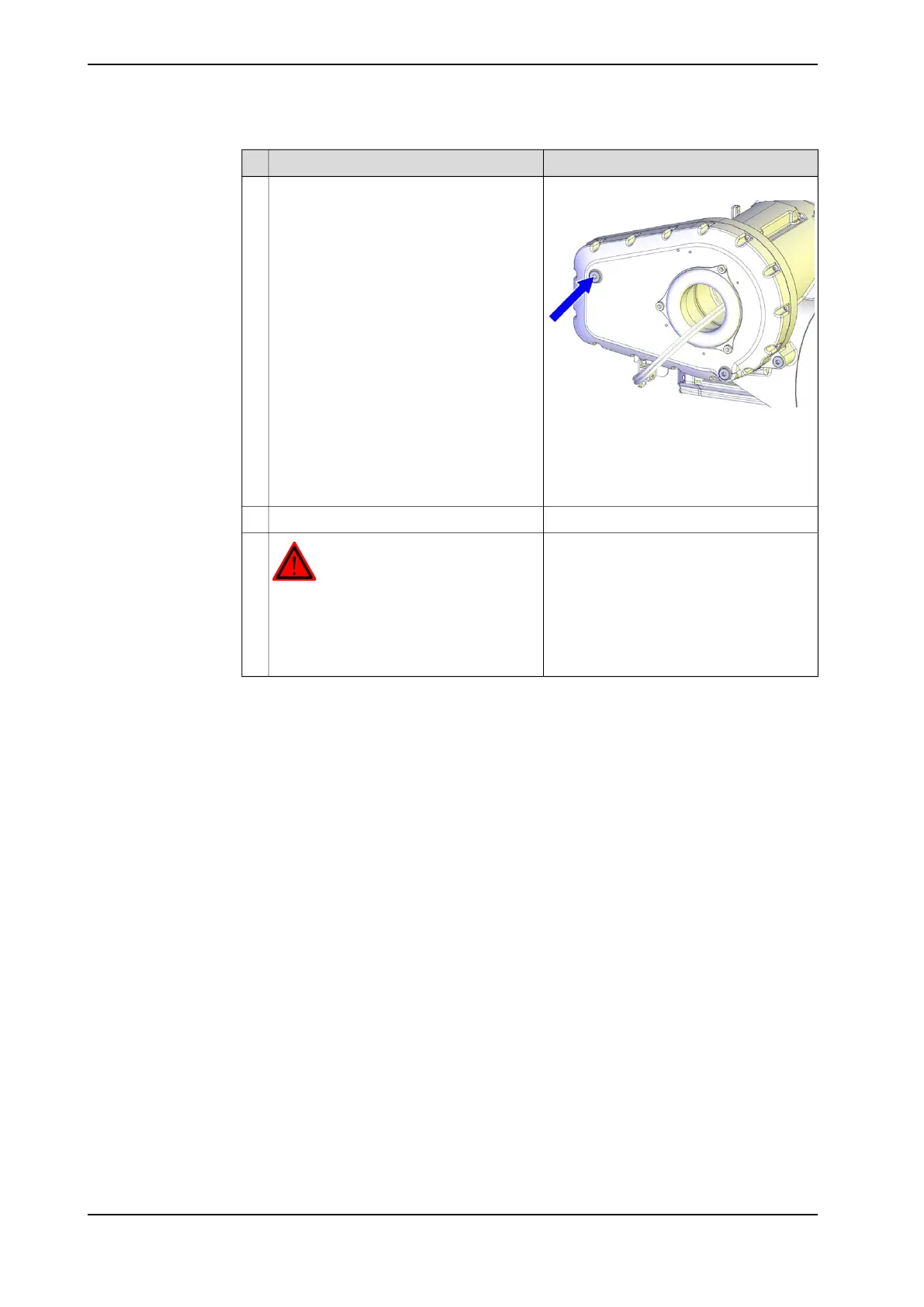

The level is measured at the fill hole.
xx1200000957
Inspect the oil level.6
Required oil level is: 0 - 10 mm below the
oil plug hole.
See Inspecting the oil level in axis-4 gear-
box on page 111.
Tightening torque: 24 NmRefit the oil plug.7
DANGER
Make sure all safety requirements are met
when performing the first test run. These
are further detailed in the section DANGER
- First test run may cause injury or damage!
on page 44.
8
156 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
3 Maintenance
3.4.5 Changing oil, axis-4 gearbox
Continued
