NoteAction

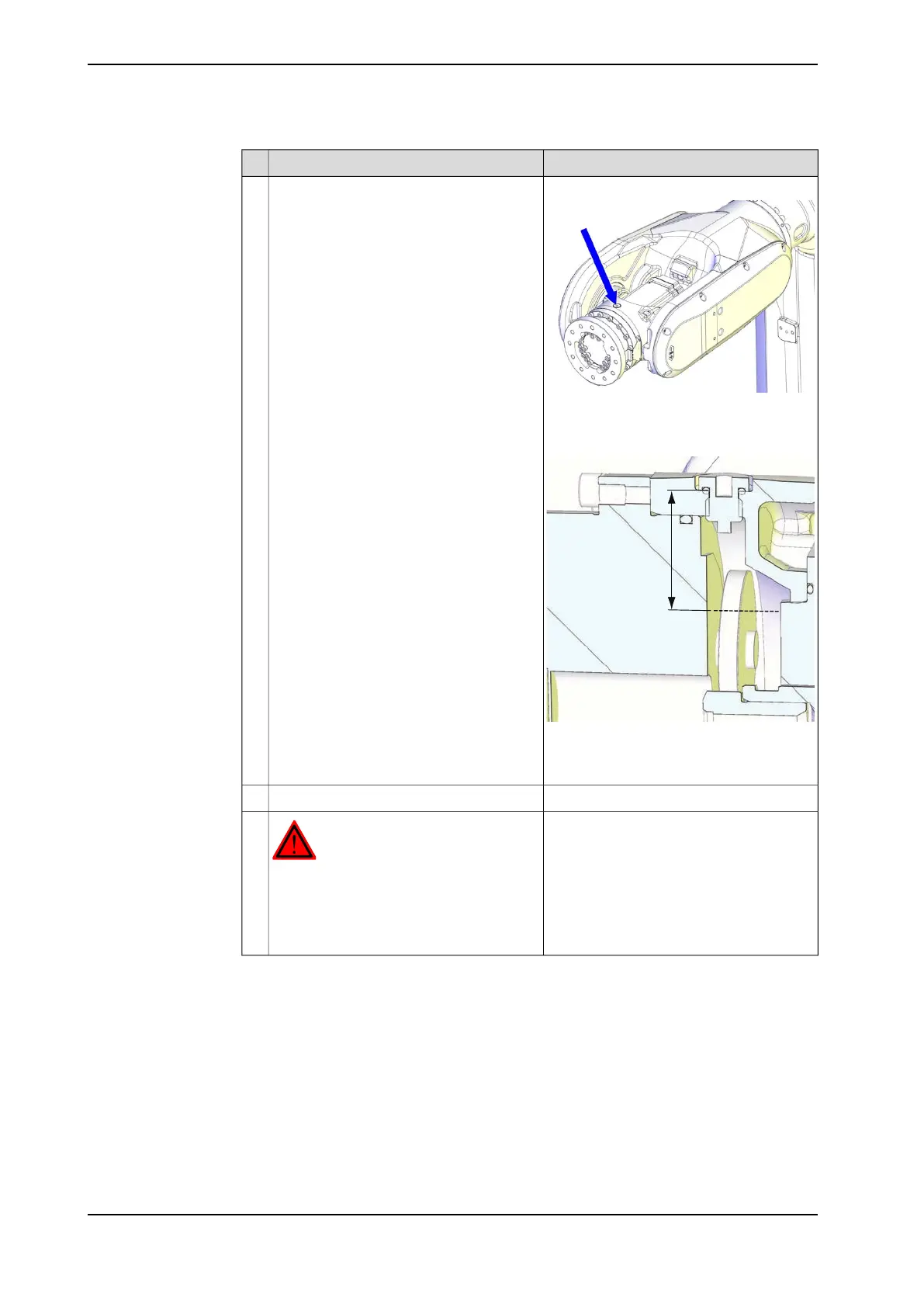

The level is measured at the fill hole.
xx1200000963
Inspect the oil level.6
Required oil level is: 50 mm ± 5 mm below
the sealing surface of the oil plug.
xx1300000693
More information is found in Inspecting the
oil level in axis-6 gearbox on page 115.
Tightening torque: 24 NmRefit the oil plug.7
DANGER
Make sure all safety requirements are met
when performing the first test run. These
are further detailed in the section DANGER
- First test run may cause injury or damage!
on page 44.
8
164 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
3 Maintenance
3.4.7 Changing oil, axis-6 gearbox
Continued
