NoteAction
24 VDC power supply
xx1200001081

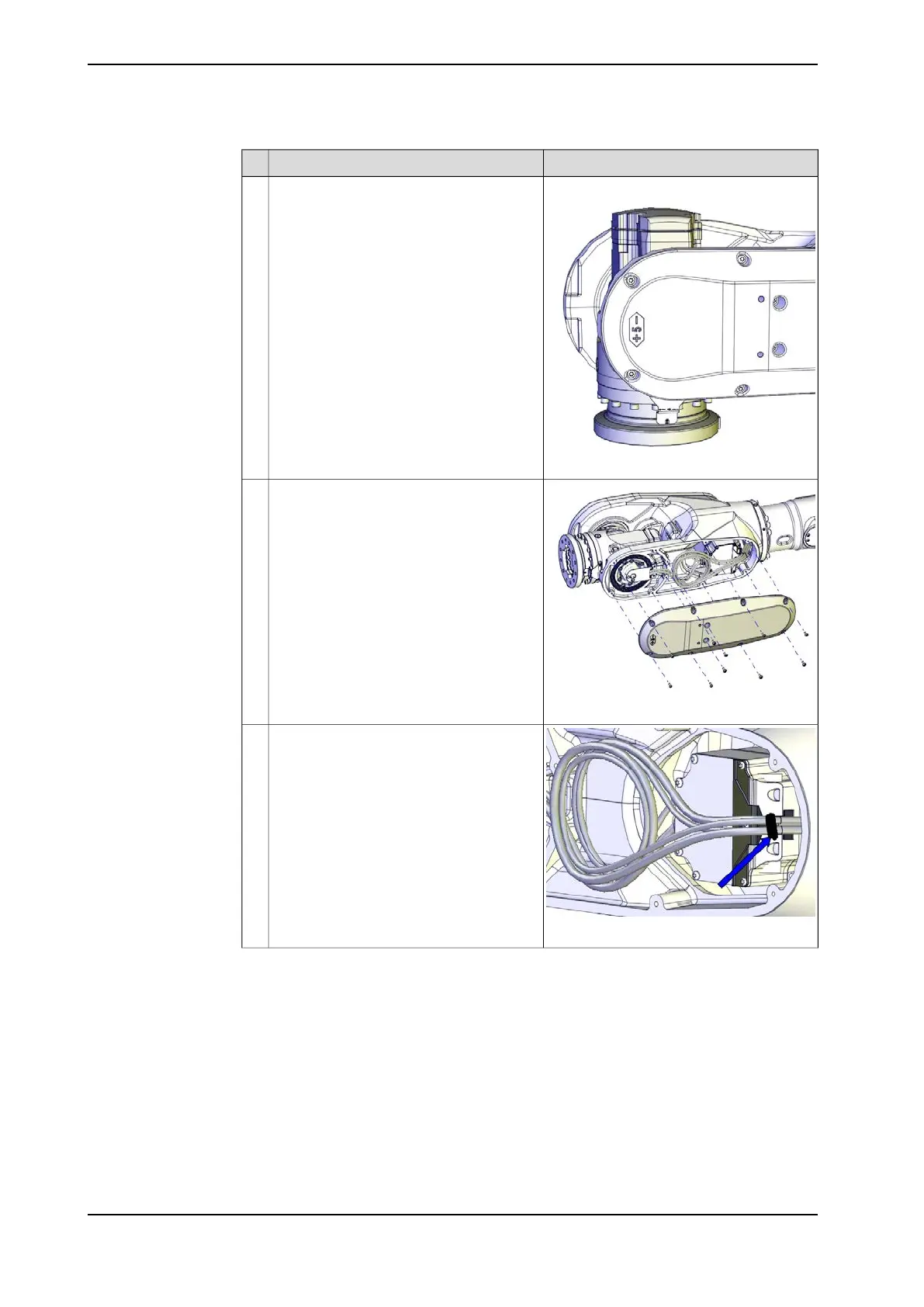

If axis-5 is not already in position +90°,
connect the 24 VDC power supply, release
the brakes and move the axis manually into
that position.
Connect to R2.MP5-connector:
• + = pin 2
• - = pin 5
2
xx1300000486
Remove the wrist cover.3
xx1300000489
Cut the cable straps that hold the cable
harness to the heat protection plate.
4
Continues on next page
194 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.1 Removing the cable harness
Continued
