NoteAction
xx1300000667

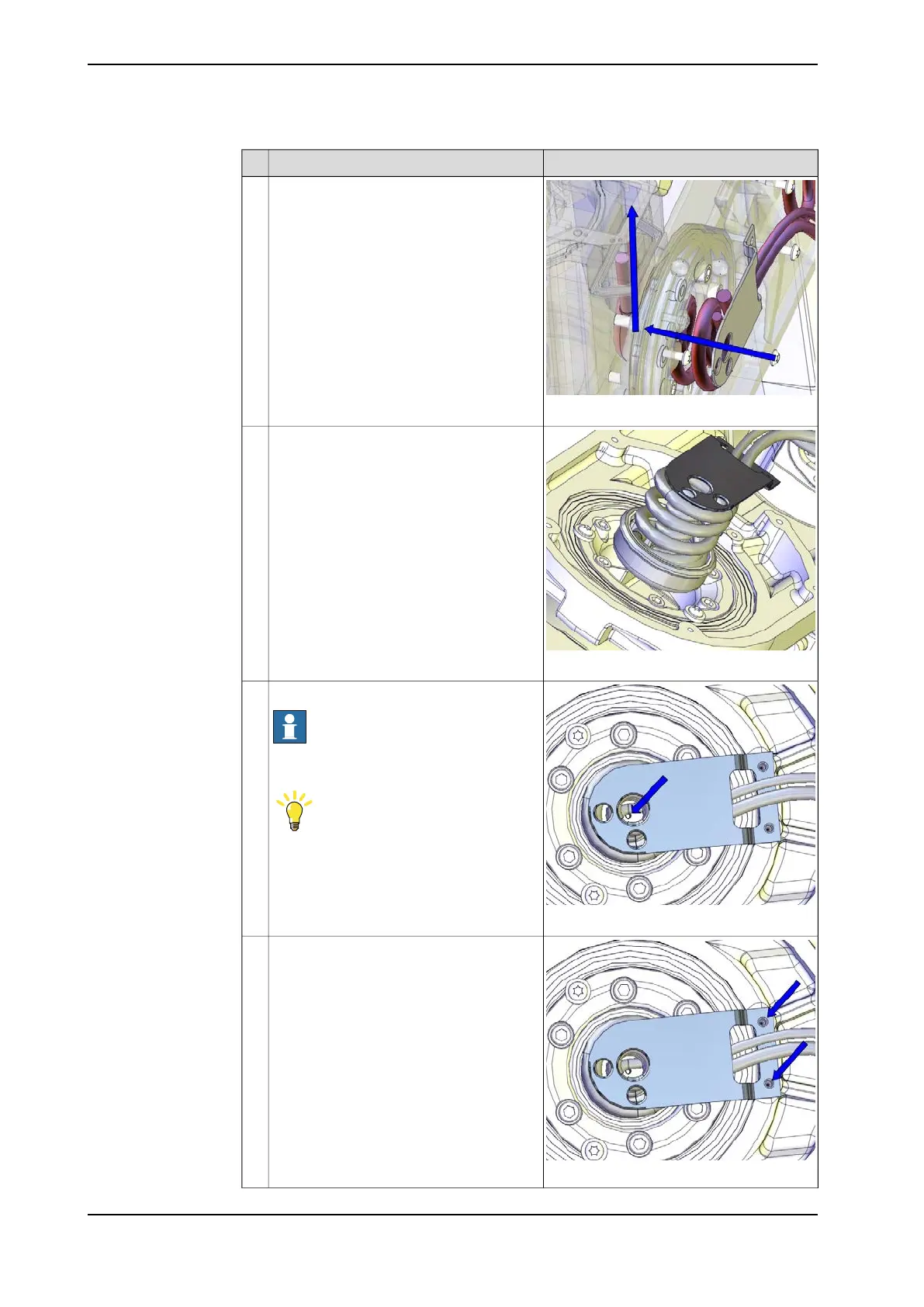

Use caution and push the cable harness
into the wrist recess and up into the axis-6
motor.
3
xx1300001113
Use caution and push the carrier into posi-
tion.
4
xx1300000485
Secure the carrier with the M4 screw.
Note
The screw is located at the bottom of the
carrier.
Tip
The attachment screw securing the carrier
may be difficult to fit. Check that the carrier
is level and completely pressed against the
bottom.
5
xx1300000484
Secure the cable bracket with its attach-
ment screws.
6
Continues on next page
232 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Refitting the cable harness
Continued
