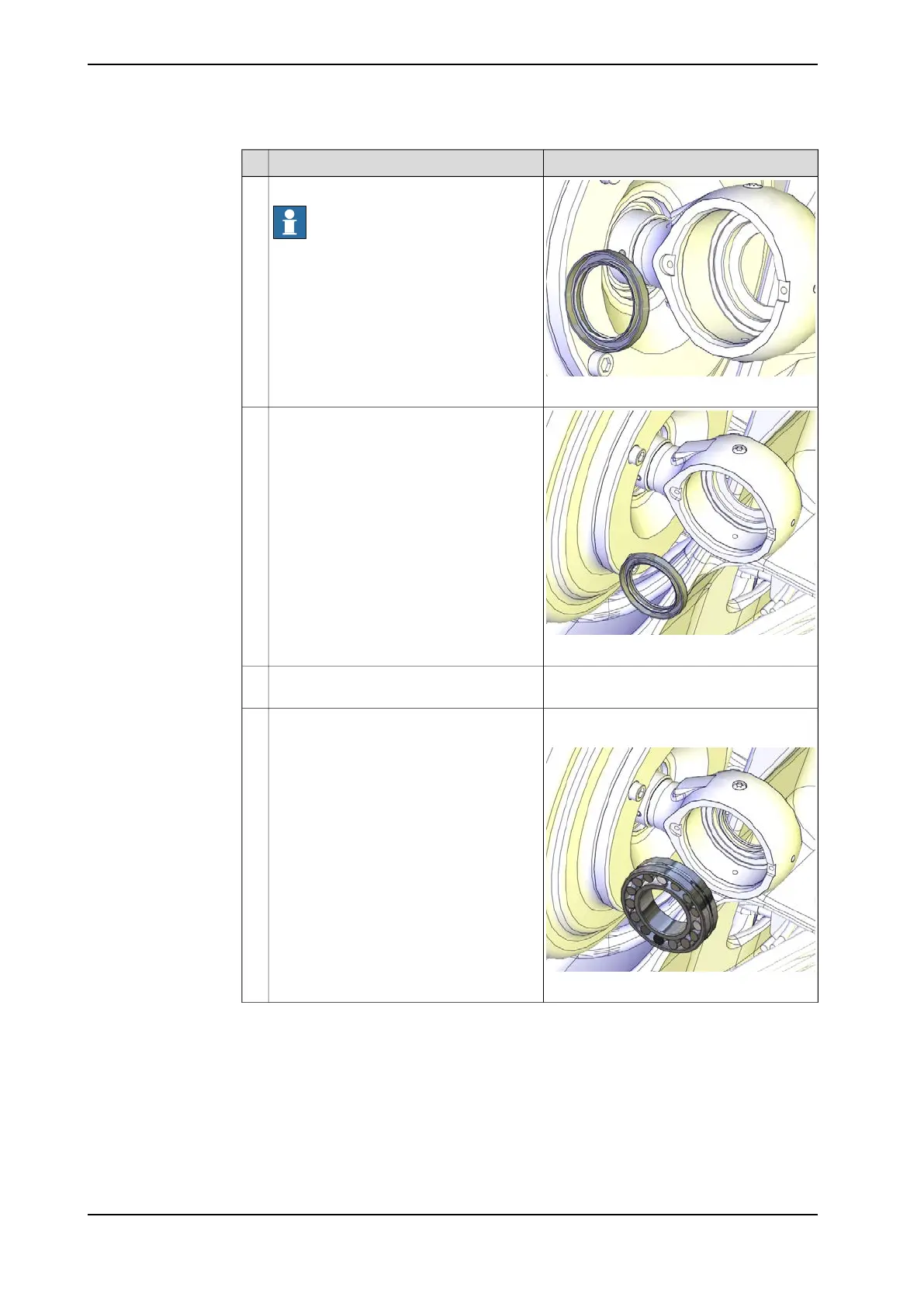

NoteAction
xx1300000839
Put the radial sealing on the press tool.
Note
Make sure that the seailng is turned the
right way!
3
xx1300000777
Use a plastic mallet or similar on the press
tool (3HAC034037-001) and refit the radial
sealing.
4
Apply some grease on the surface for the
bearing.
5
Dismantle and mounting tool:
3HAC028920-001
xx1300000776
Apply the dismantle and mounting tool and
press in the spherical roller bearing.
6
Continues on next page
348 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.6.1 Replacing spherical roller bearing, link ear
Continued
