NoteAction
xx1300000489

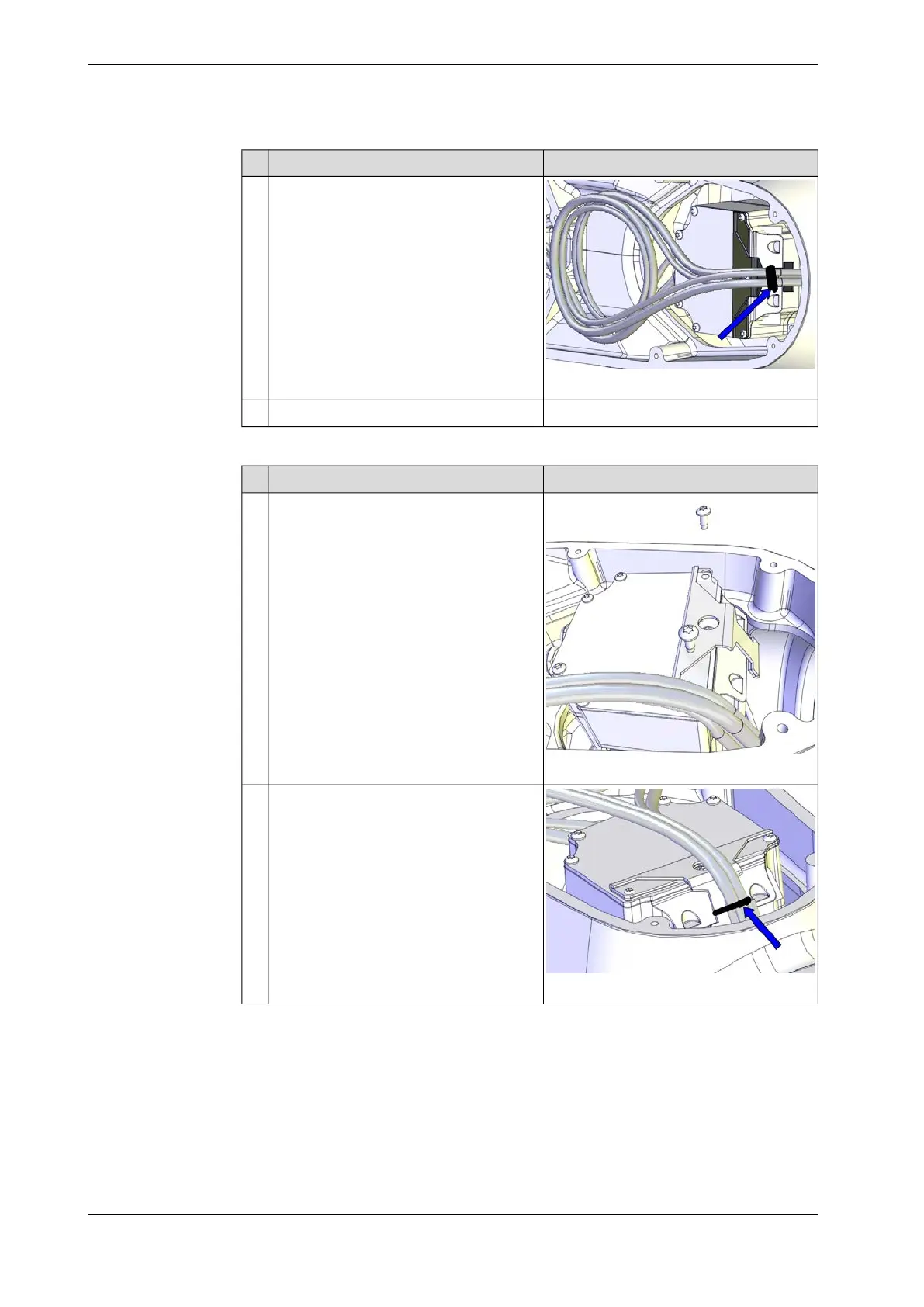

Secure the cable harness with the cable
straps to the heat protection plate.
7
Make sure that the cover is tightly sealed.8
Concluding procedure
NoteAction
xx1200001011
Refit the heat protection plate.1
xx1200001009
Secure the cable harness to the heat pro-
tection plate with two cable straps.
2
Continues on next page
438 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.5 Replacing the axis-5 motor
Continued
