NoteAction

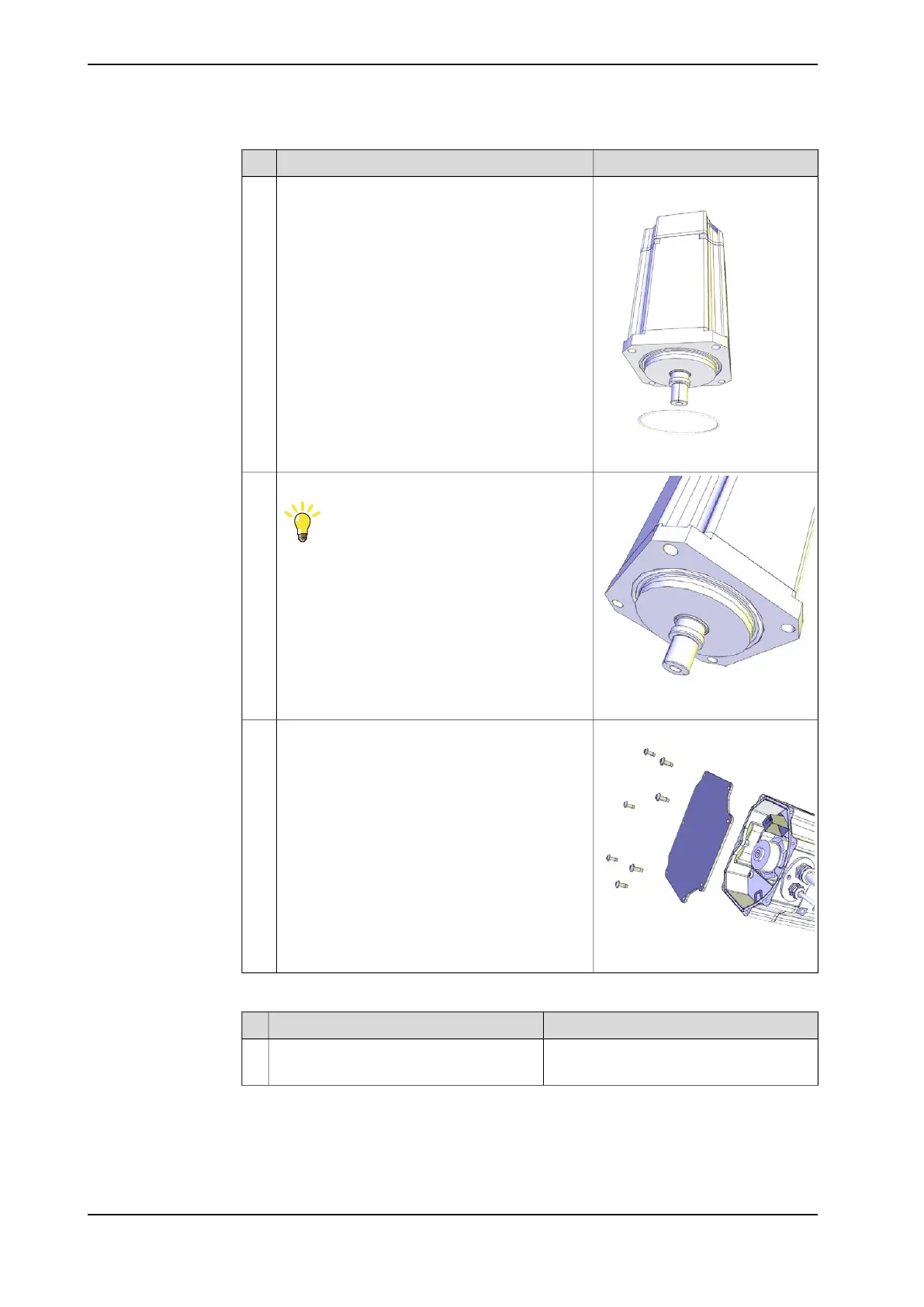

O-ring, 3HAB3772-107
xx1200001019
Check the o-ring.
Replace if damaged!
4
xx1200001020
Make sure the o-ring is seated in the groove.
Tip
Lubricate the o-ring with some grease for a better
fitting in the groove.
5
xx1200001135
Remove the cover, if the motor is a new spare
part.
6
Securing the axis-2 motor
NoteAction
Guide pin, M10x150: 3HAC15521-2Fit guide pins in opposite holes.1
Always use guide pins in pairs!
Continues on next page
494 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.8.2 Replacing the axis-2 gearbox
