Front Cover Extension Kits
The front cover extension kit for the SH12 comes two sets of front cover extension
brackets:80 mm and 95 mm. Each set comes with two brackets to be mounted on each
side of the shelf.

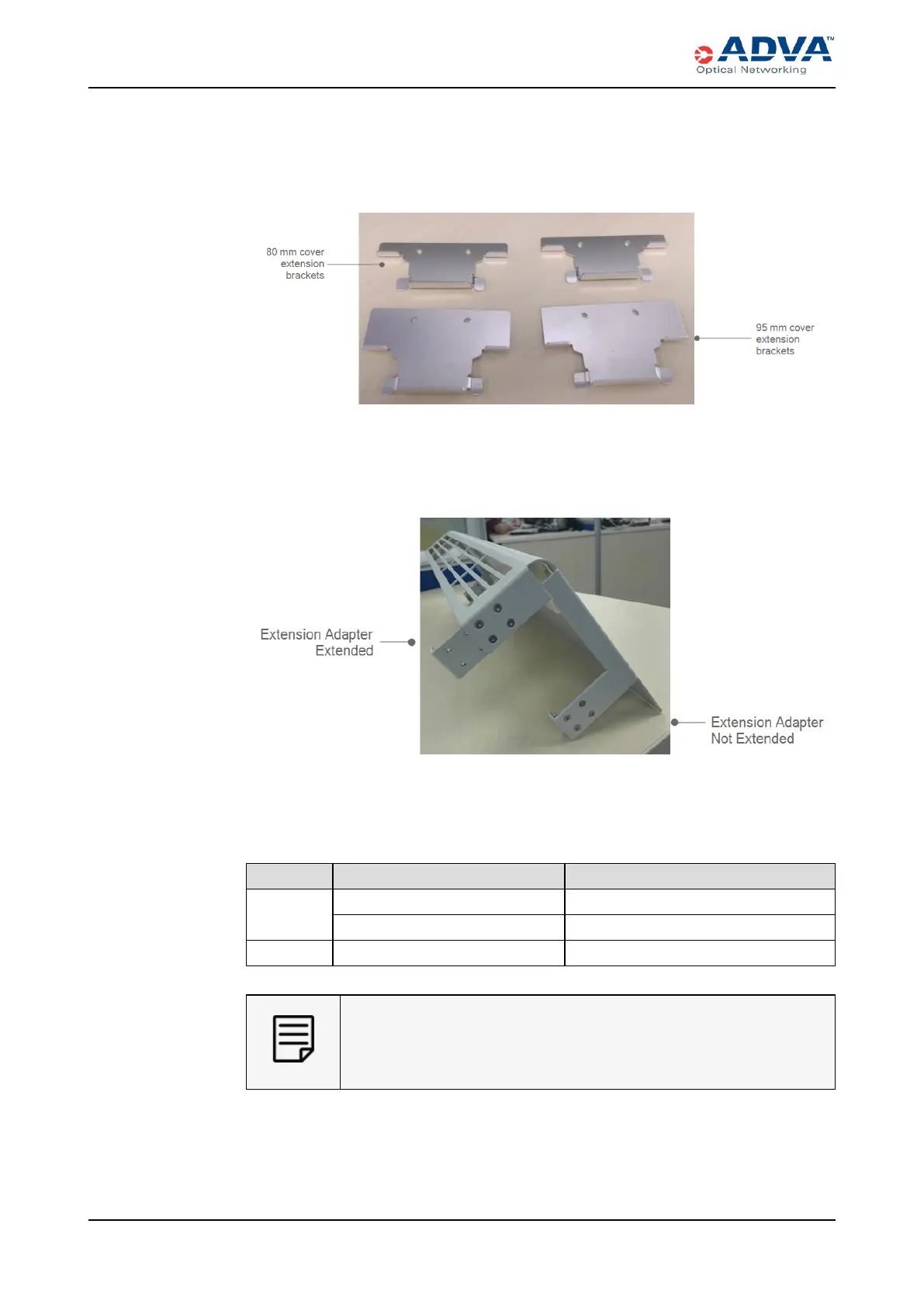

Figure 23: SH12 Cover Extension Brackets
The SH4R cover extension adapters are already attached to the front cover and will need
to be manually extended. See Installing the Front Cover Extension for more information.
Figure 24: Extension Adapters
The following table provides the possible distances between the faceplates of the
modules and the shelf front cover, depending on the specific mounting position of the
cover extension brackets/adapters.
Shelf Adjustable Depths Front Cover Distances
SH12
15 mm (0.59 in.) 80 mm (3.15 in.)
30 mm (1.18 in.) 95 mm (3.74 in.)
1
SH4R 25 mm (0.98 in.) 95 mm (3.74 in.)
Without the front cover extensions, the front cover distance for the SH12
is 65 mm (2.56in.) and for the SH4R is 70 mm (2.76 in.).
116 FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016)
