Supported Configurations

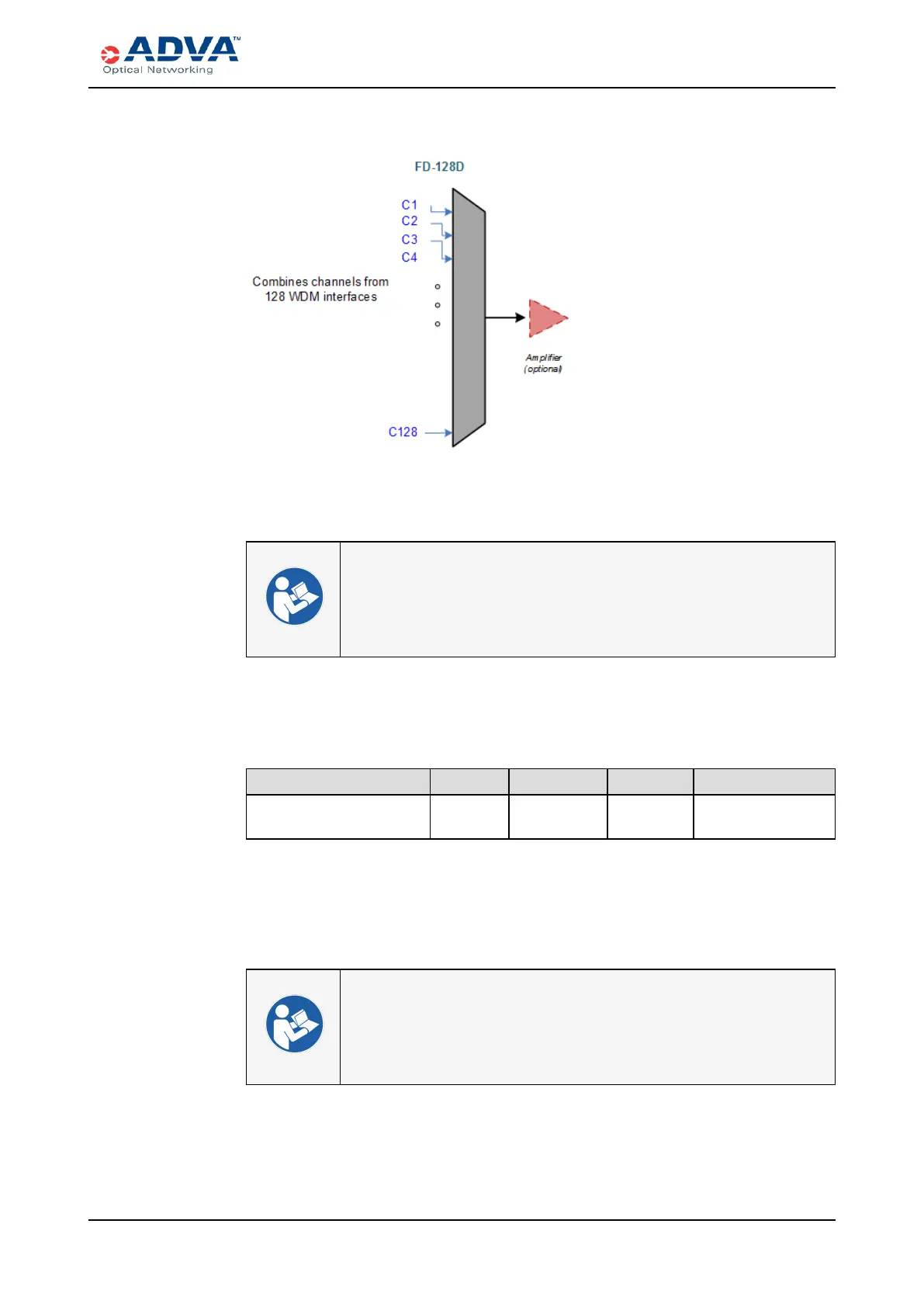

Figure 91: Up to 128 Multiplexed DWDM channels in C-band (with 37.5 GHz
spacing)
EDFA modules can only be placed at the FD-128D multiplexer network port as post-
amplifier (not at the client ports of the multiplexer).
l FD-128D
l SH12 Shelf
l SH4R Shelf
l Traffic Module Considerations
Optical Amplifiers
Amplifier Types Built-in OPT Limit Net APR Notes
AM-S20H-2
(20 dBm pre-amplifier)
X 20 dBm limit only
Table 66: Implemented Methods
To ensure the pumps are not allowed to operate unless a safety method is enabled,
amplifier pumps are kept off unless one method is provisioned. The start-up condition no
method is enabled and pumps are held off. The pump enable function is implemented in
hardware.
l AM-S20H-2
l SH12 Shelf
l SH4R Shelf
l Traffic Module Considerations
FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016) 351
