Replacing the SH4R Air Filter Pads
11. Reinstall the lower front cover as described in Removing and Installing Front Covers.
12. Dispose of the dirty air filter pad properly.
l Cooling and Airflow
l Clearance Requirements
l Air Filter Pads
l Side Air Covers
Replacing the SH4R Air Filter Pads
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESD jack.
2. If mounted, remove the front cover from the shelf as described in Removing and
Installing Front Covers.
3. Use a Torx T10 screwdriver to unscrew the retaining thumb screw from the air filter.
4. Grasp the handle and carefully slide the air filter away from the shelf.

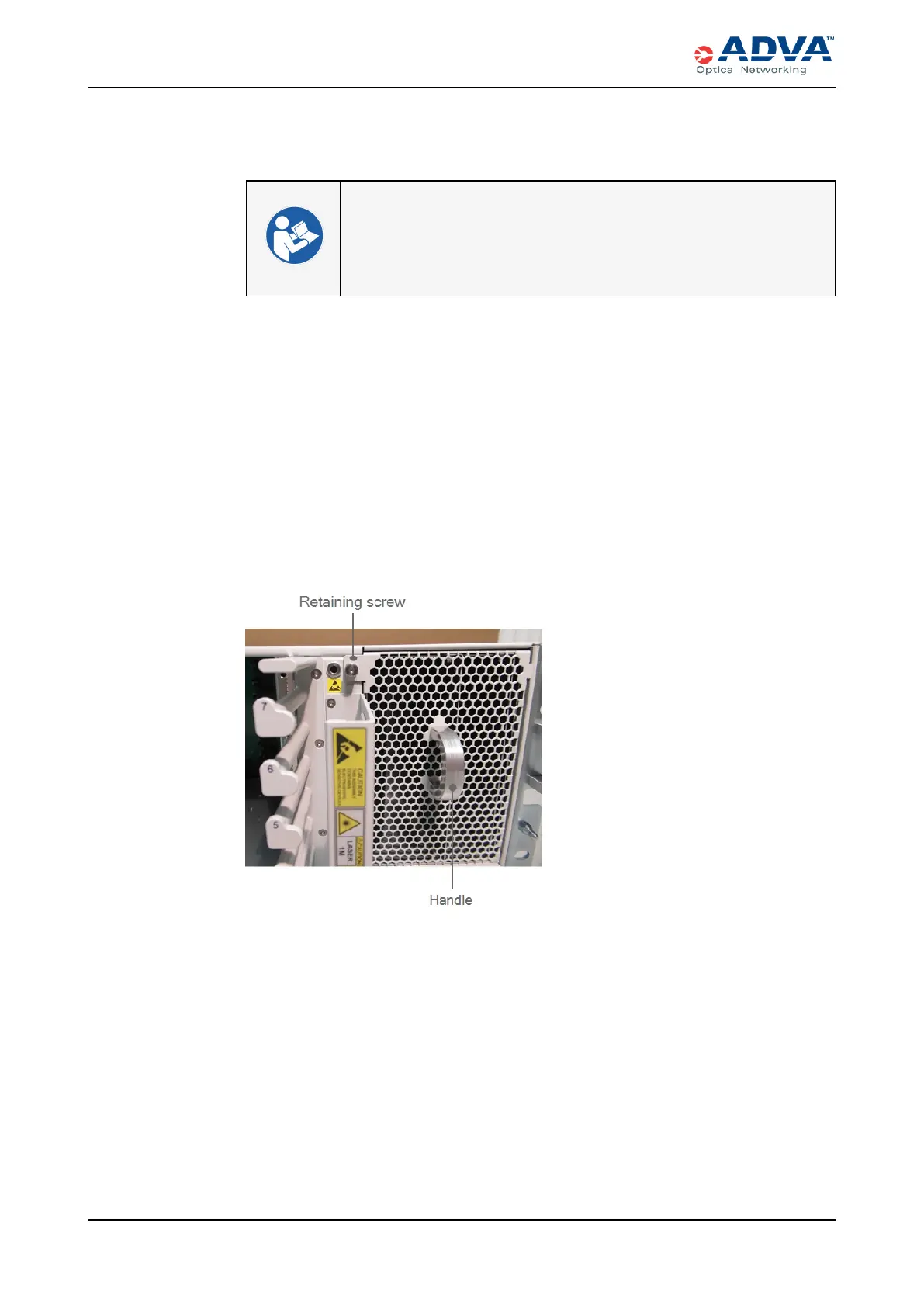

Figure 79: SH4R Air Filter
5. Place the air filter on a static-dissipative mat.
6. Use a Torx T10 screwdriver to unscrew the retaining thumb screw from the air filter
case.
