Replacing the SH4R Air Filter Pads

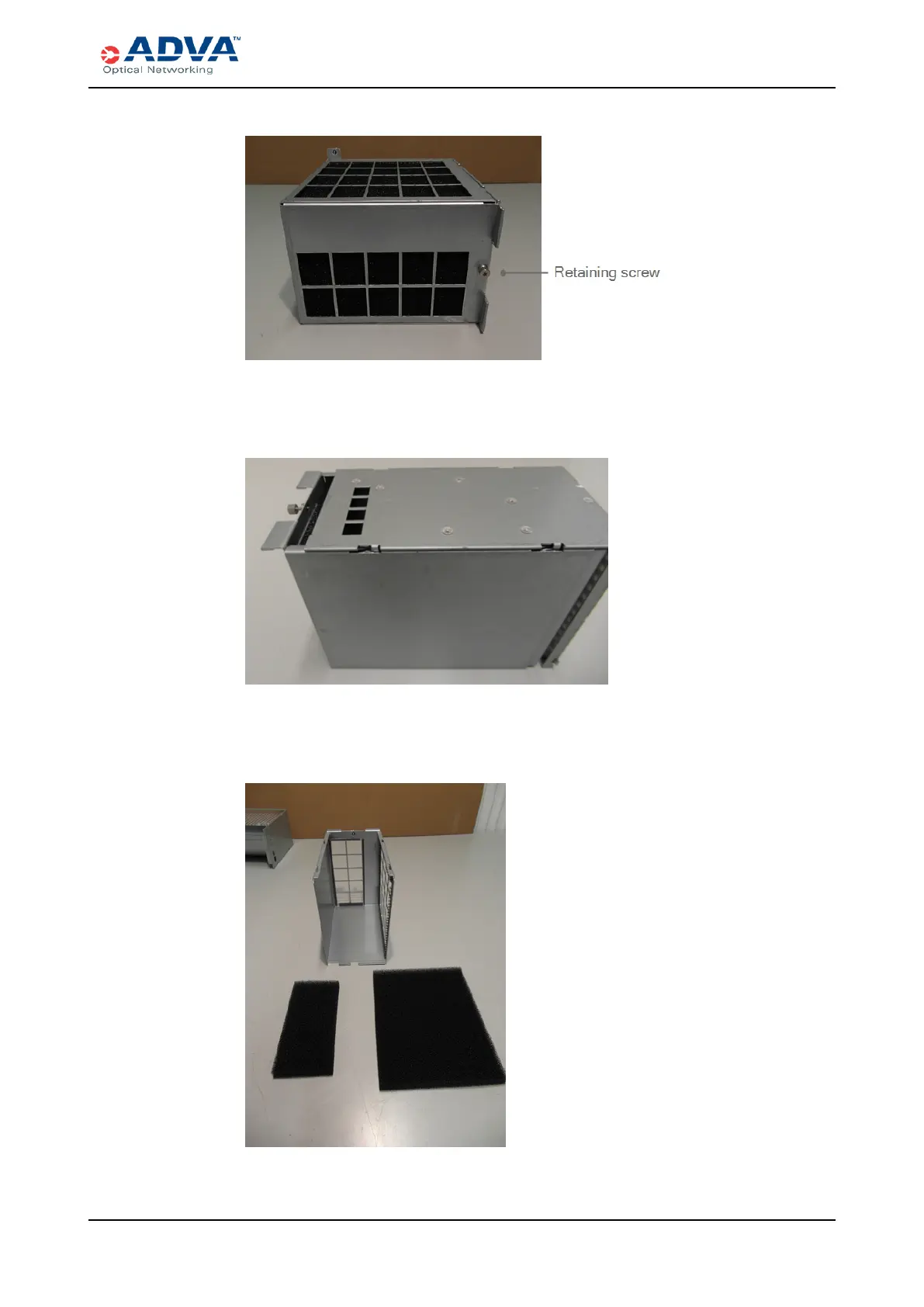

Figure 80: Air Filter Case
7. Gently slide the case open.
Figure 81: Sliding Air Filter Case
8. Use your fingers to carefully remove the dirty air filter pad away from each air duct.
Figure 82: SH4R Air Filter Pads
