Ethernet Pinouts
Chapter 14
Port Pinouts
Ethernet Pinouts 166
Mini-AB USB Pinouts 167
Serial Pinouts 167
l Ethernet Cables
l USB Cables
l Cables

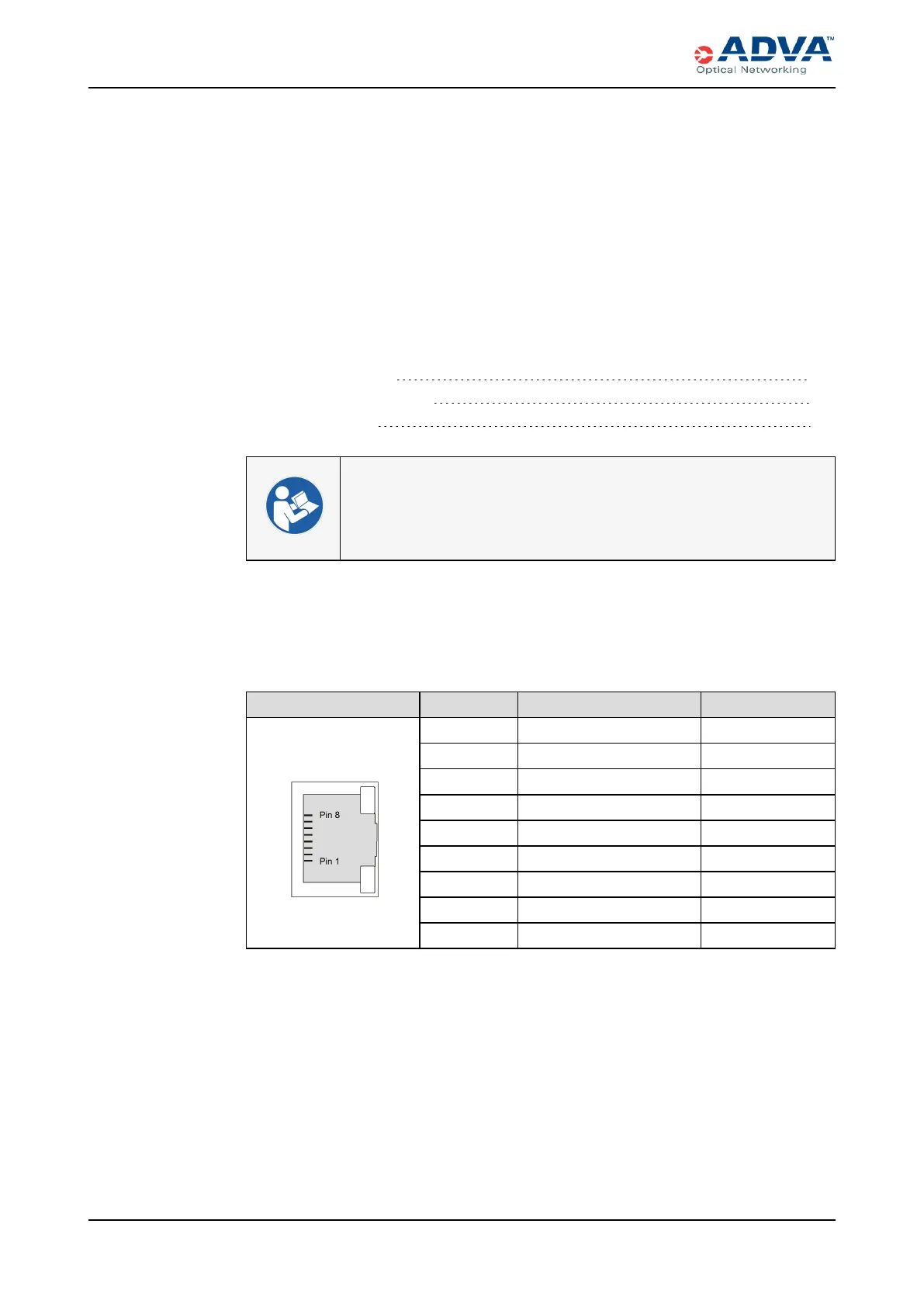

Ethernet Pinouts
RJ-45 Panel Jack Pin Number Signal Signal Direction
S S S
1 D1+ output
2 D1– input
3 D2+ output
4 D3+ output
5 D3– input
6 D2– input
7 D4+ output
8 D4– input
Table 63: Pinouts
166 FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016)
