SH12 Shelf
Grounding
The SH12 contains the following ground terminals and connectors:
l Chassis ground
l Signal ground
l Strap for 2-zone/3-zone operation
l ESD ground
The signal ground and 3-zone ground configuration are not supported in
this release.
To provide greater flexibility, the SH12 supports four chassis grounding terminals, as
shown in the following figure.

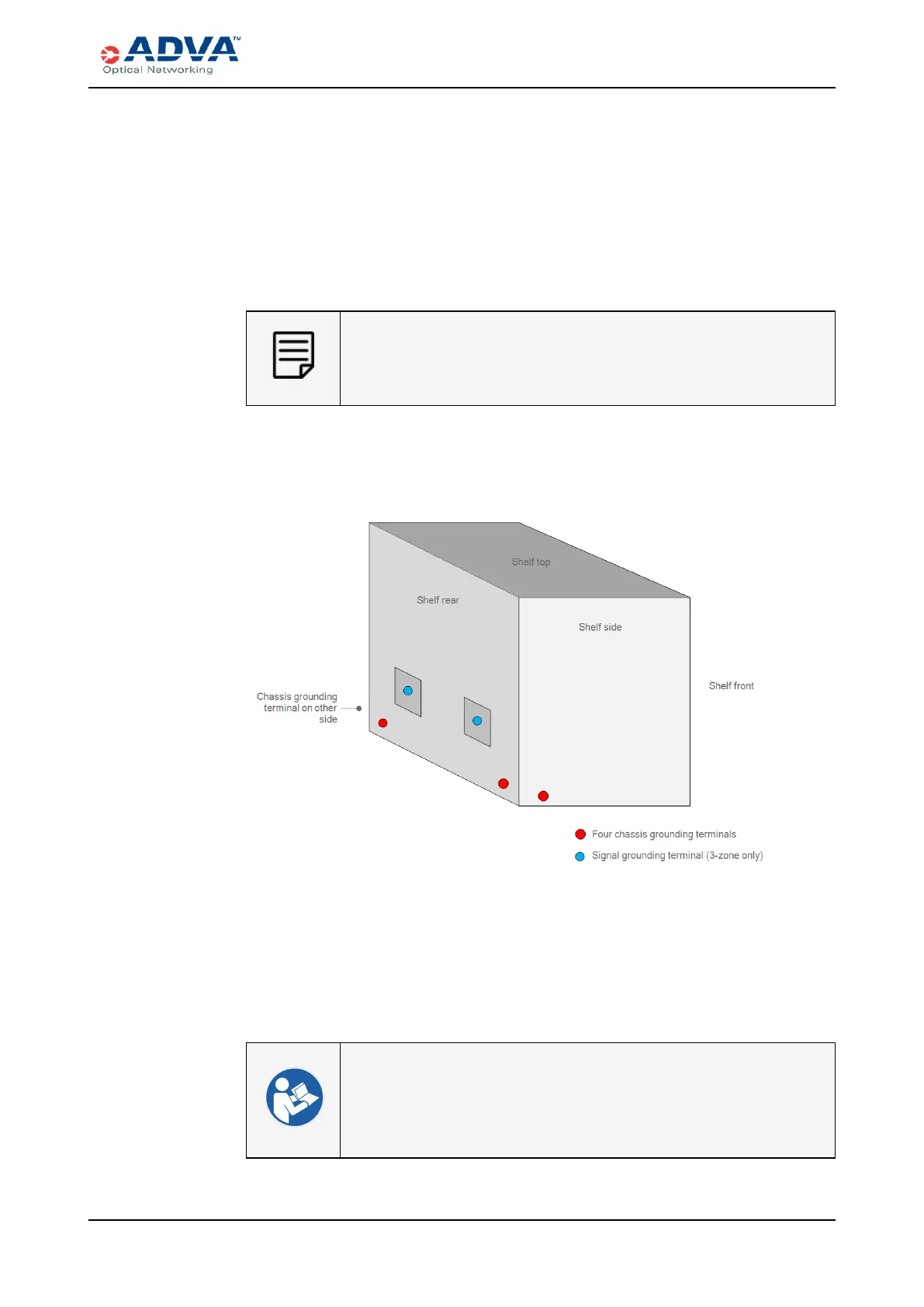

Figure 3: Grounding Terminals
The chassis grounding terminals are as follows:
l Shelf rear: one on each side (bottom part of shelf, left and right) — Normally used for
installations with space behind the shelf
l Shelf side: one on each side (bottom rear part of shelf) — Only used when there is no
space behind the shelf
l Grounding Cable — SH12
l General Power and Grounding Guidelines
l Electrical Safety Guidelines and Warnings
l SH12 Shelf
FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016) 29
