Adva FSP 3000 - Breakout Cables

Fiber Optic Cables and Accessories
Breakout Cables
The following table details the breakout cables available from ADVA Optical Networking.
These breakout cables are used to connect the MP-2B4CT to the FD-48E or FD-128D.
Item Description
Sales Item
Number
Optical
Connectors
Fiber
Type
Overall
Length
Breakout
Length
Trunk
Length
J/SM/MPO24-
24LC/0300
1051002610
l 1 x MPO24
l 24 x LC/PC
Single-
mode
3 m (9.84 ft) 1 m (3.28 ft) 2 m (6.56
ft)
J/SM/MPO24-
24LC/1000
1051002611
l 1 x MPO24
l 24 x LC/PC
Single-
mode
10 m (32.81
ft)
1 m (3.28 ft) 9 m (29.53
ft)

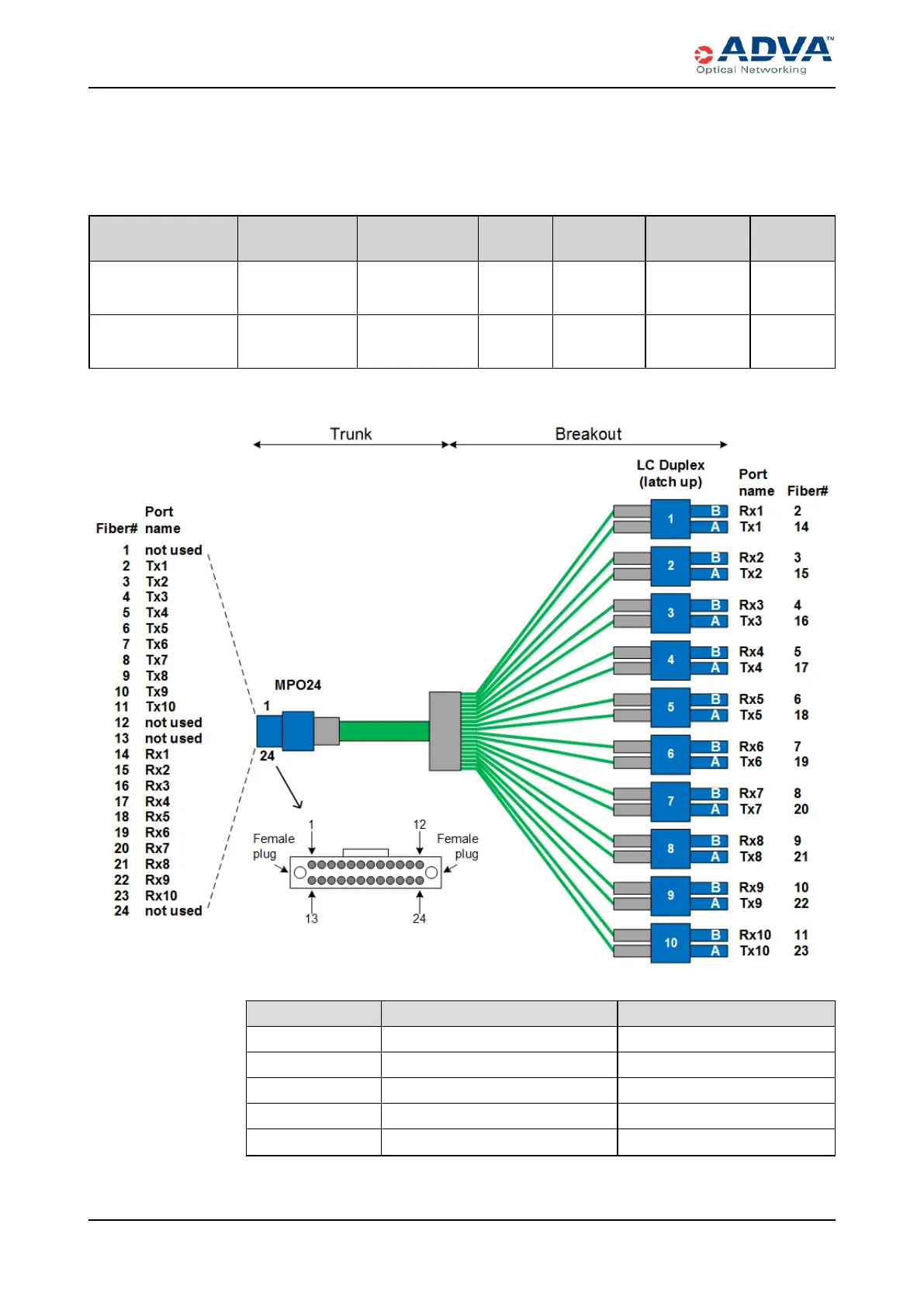

Figure 36: MPO24-24LC Breakout Cable — Fiber and Port Reference
MPO24 Port MPOPort Description LCPort Description
1 Tx1 Rx1
2 Tx2 Rx2
3 Tx3 Rx3
4 Tx4 Rx4
5 Tx5 Rx5
