Installing the Mounting Brackets on a 4U Shelf
Installing the Mounting Brackets on a 4U
Shelf
In this procedure, 4U shelf refers to the FD-128D. For procedures for the
SH4R, see Installing the Mounting Brackets on the SH12 and SH4R
Shelves .
This procedure assumes that:
l The shelf has been unpacked and inspected;
l It is damage-free; and
l The shelf is on a static-dissipative mat.
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESDjack.
2. Place the appropriate 19-inch, 23-inch, or ETSI mounting bracket on one side of the
shelf in the correct position.
The following figures show the correct position of each bracket type.

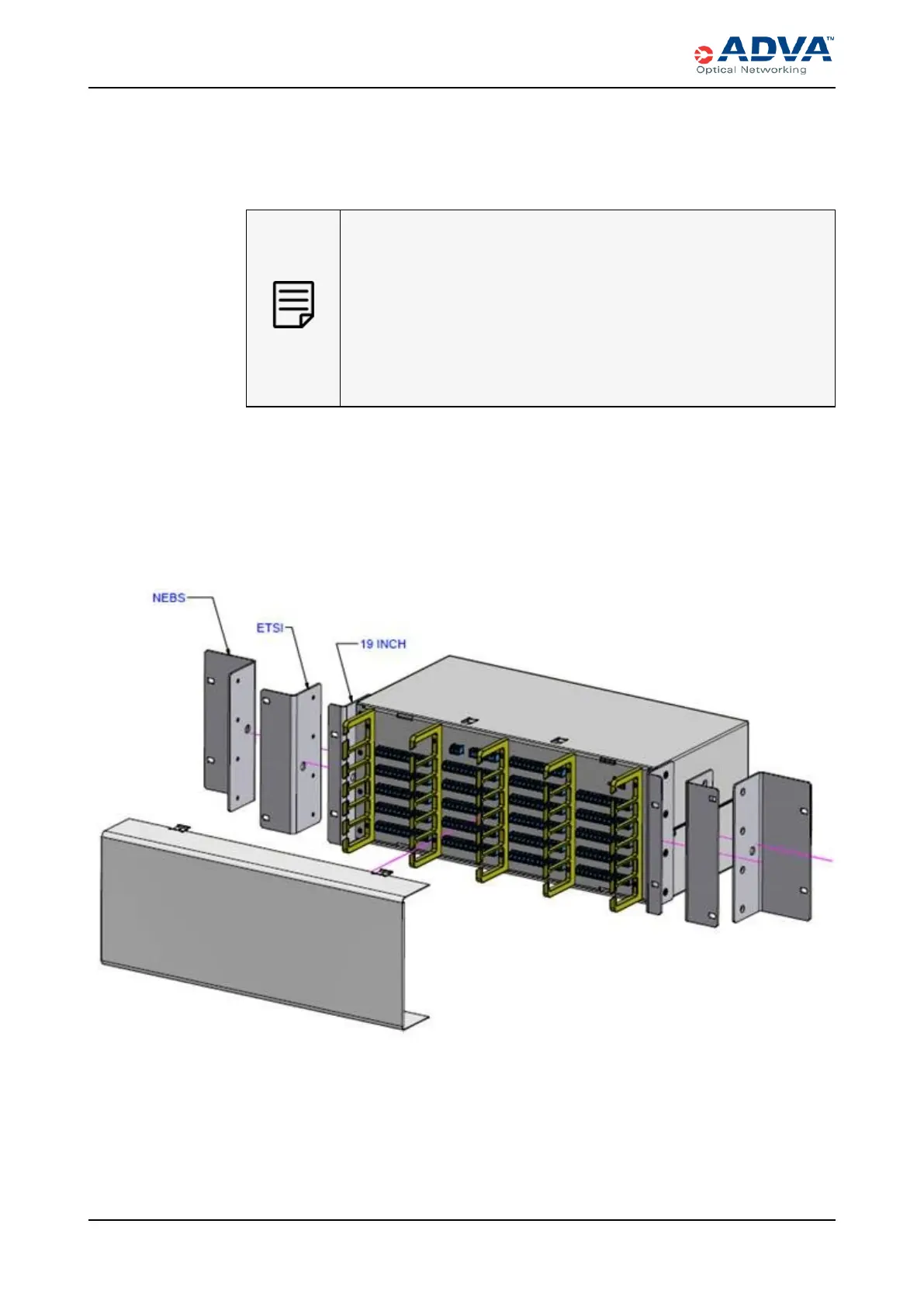

Figure 41: Fitting the Mounting Brackets to an FD-128D
3. Use the Torx T10 screwdriver and the four screws to attach the appropriate mounting
bracket to one side of the shelf.
4. Repeat Steps 2 and 3 for the opposite side.
186 FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016)
