Passive Shelf Management
Passive shelf management is routed via the Common Equipment Module(CEM), as
shown in the following figures. The passive shelves are managed by the CEM (reading of
inventory only — no fault, performance management, or configurations).

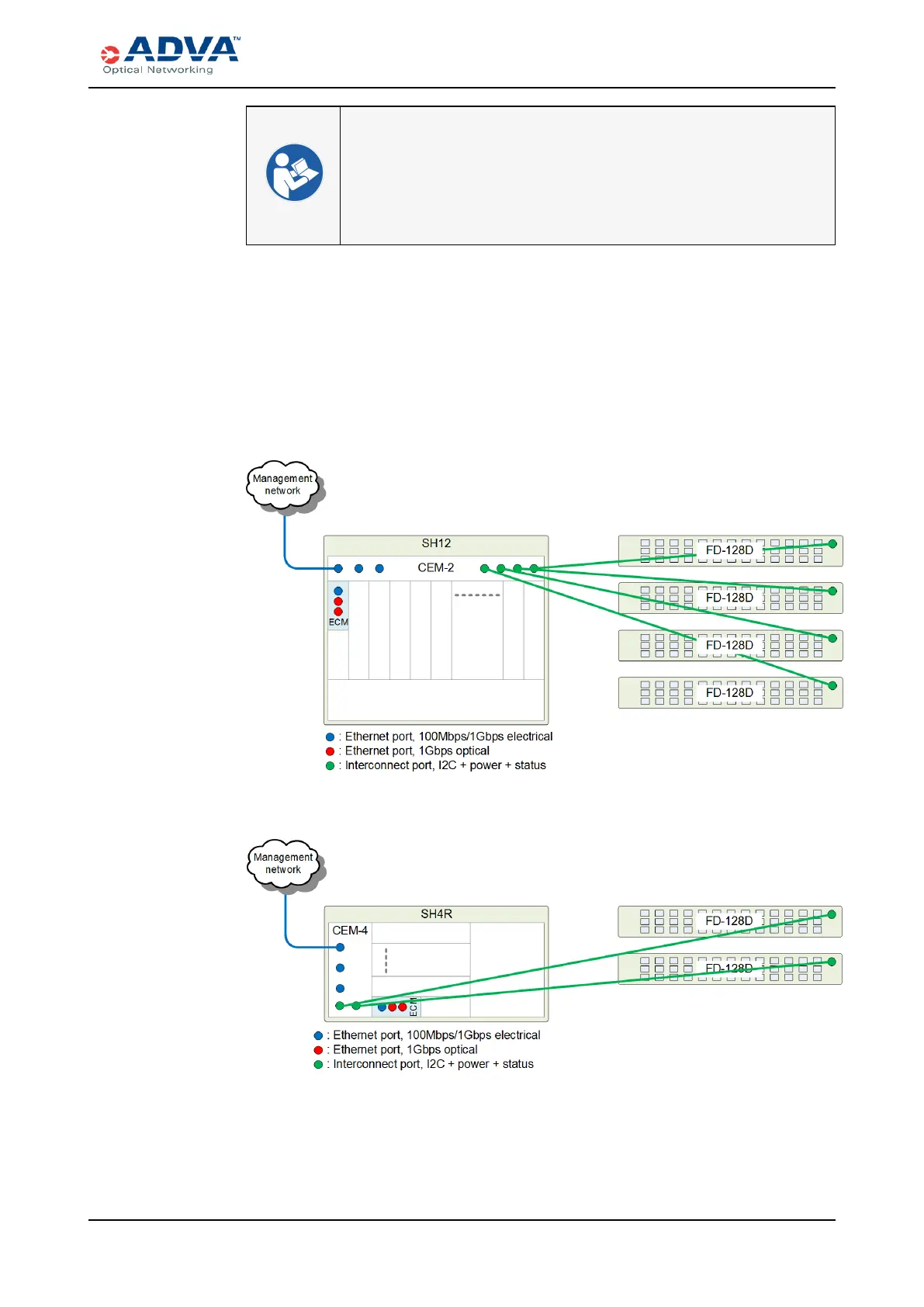

Figure 10: Passive Shelf Management — SH12
Figure 11: Passive Shelf Management — SH4R
FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016) 39
