Adva FSP 3000 - Connecting the Grounding Terminals; Overview

Overview
Chapter 20
Connecting the Grounding Terminals
Overview 199
Required Tools and Equipment 200
Connecting aSH12 to the Grounding Terminals 201
Connecting a SH4R to the Grounding Terminals 202
Overview
To meet safety and EMI requirements, each FSP 3000 C shelf must individually be
connected to the rack’s or cabinet’s ground point.
The following figures provide the location of the grounding terminals on the FSP 3000 C
shelves.

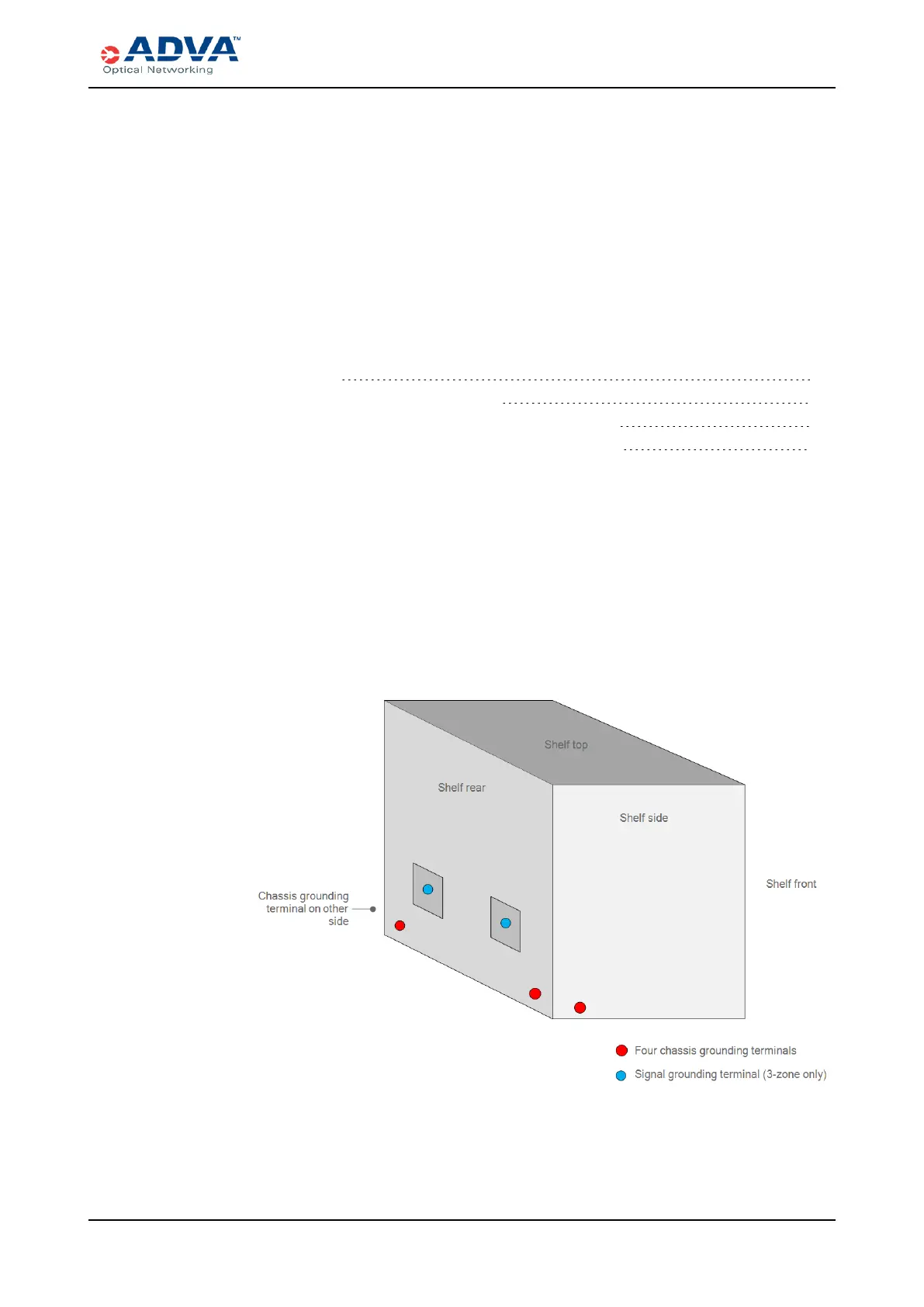

Figure 54: SH12 Grounding Terminals Location
FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016) 199
