Optical Accessory Modules
Module Slot Cover Sales Item Number
ECM-2 F8/SC-XCM 1063801092-01
PSM-DC and PSM-AC4 F8/SC-PSM 1063801093-01
Traffic modules F8/SC-TM 1063801091-01
Table 58: Available Slot Covers
l Cooling and Airflow —SH12
l Cooling and Airflow — SH4R
l Operational Risks
l General Installation and Maintenance Guidelines
l Installing the Slot Covers
Optical Accessory Modules
FMT/1HU Shelf 122
FMT/1HU Shelf
Overview 122
Features 124
Cable Capacity 124
Shipment Contents 125
Overview
The FMT/1HU is a rack-mountable, fiber management shelf. It includes a fiber optic tray
to efficiently manage and store the optical fibers used with an FSP 3000 C shelf

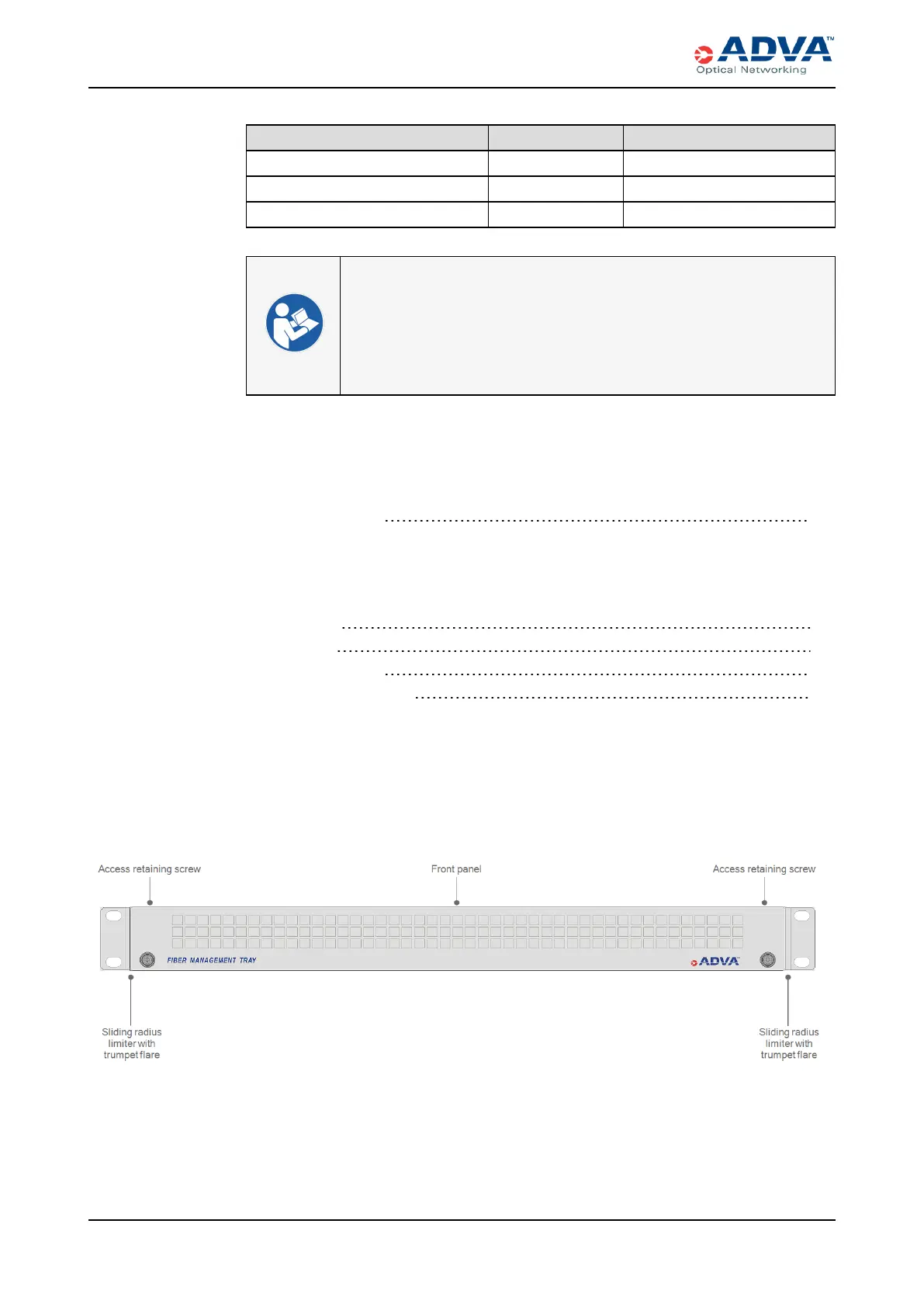

Figure 29: FMT/1HU Shelf — Front View
On the left and right side of the shelf, sliding radius limiters provide cable management for
incoming and outgoing fibers. The fiber optic cables are routed through the two sliding
radius limiters with trumpet flares into the fiber optic tray of the fiber management shelf.
122 FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016)
