Optical Accessory Modules
One sliding radius limiter with trumpet flare is located on the left and one on the right side
of the fiber management shelf.
When the cables are properly installed in the fiber management shelf, slack loops will be
formed within the shelf by the movement of the sliding radius limiter with trumpet flare
when the shelf is closed.
Keep fiber-optic cables organized. If you do not use your rack posts for
fiber management, ADVA Optical Networking strongly recommends
using the FMT/1HU.

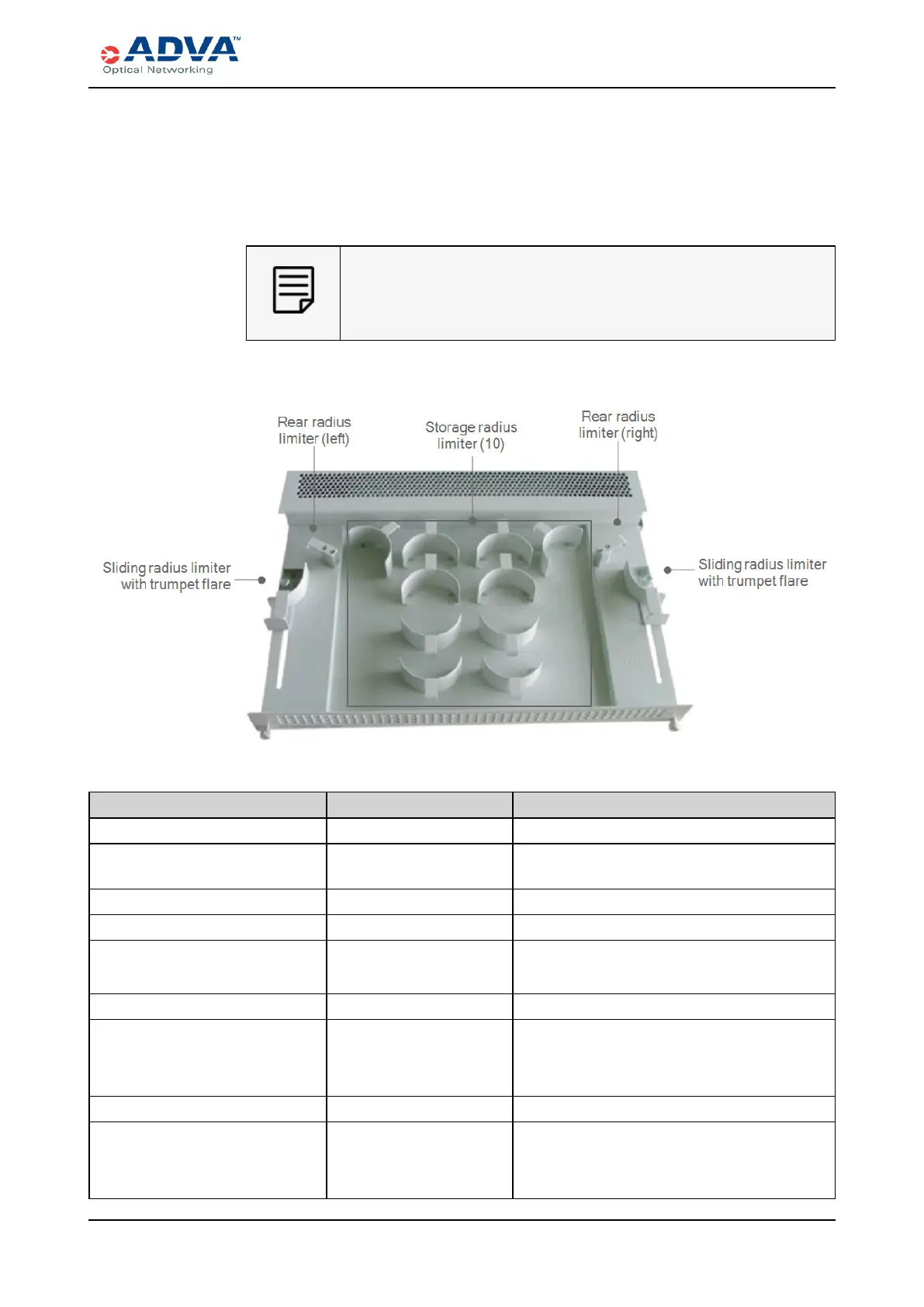

Figure 30: FMT/1HU Shelf — Internal Fiber-optic Tray
Parameter Value Notes
Sales item number 1078700066
Release introduced FSP 3000R7 Release 9.2 This shelf is compatible with both the FSP
3000R7 and FSP 3000 C systems.
Depth 273 mm (10.8 in.)
Width 443 mm (17.5 in.) Without mounting brackets installed
Height
l 1U
l 43.4 mm (1.7 in.)
Weight 4.7 kg (10.4 lbs)
Rack format support
l 19-inch
l 23-inch
l ETSI
All mounting brackets included with shelf
Power requirements N/A
Environmental standards
compliance
l Telcordia SR-3580 Level 3 (NEBS)
l ETSI EN 300 019-1-3 Class 3.1
l IEC 60529 IP20 (indoor office)
Table 59: General Information — FMT/1HU
