48 Channel Multiplexed with FD-48E
With a channel interface output power of maximum 6 dBm, the required minimum loss of
the 48 channel mux/demux (FD-48E) must be 1.5 dB.

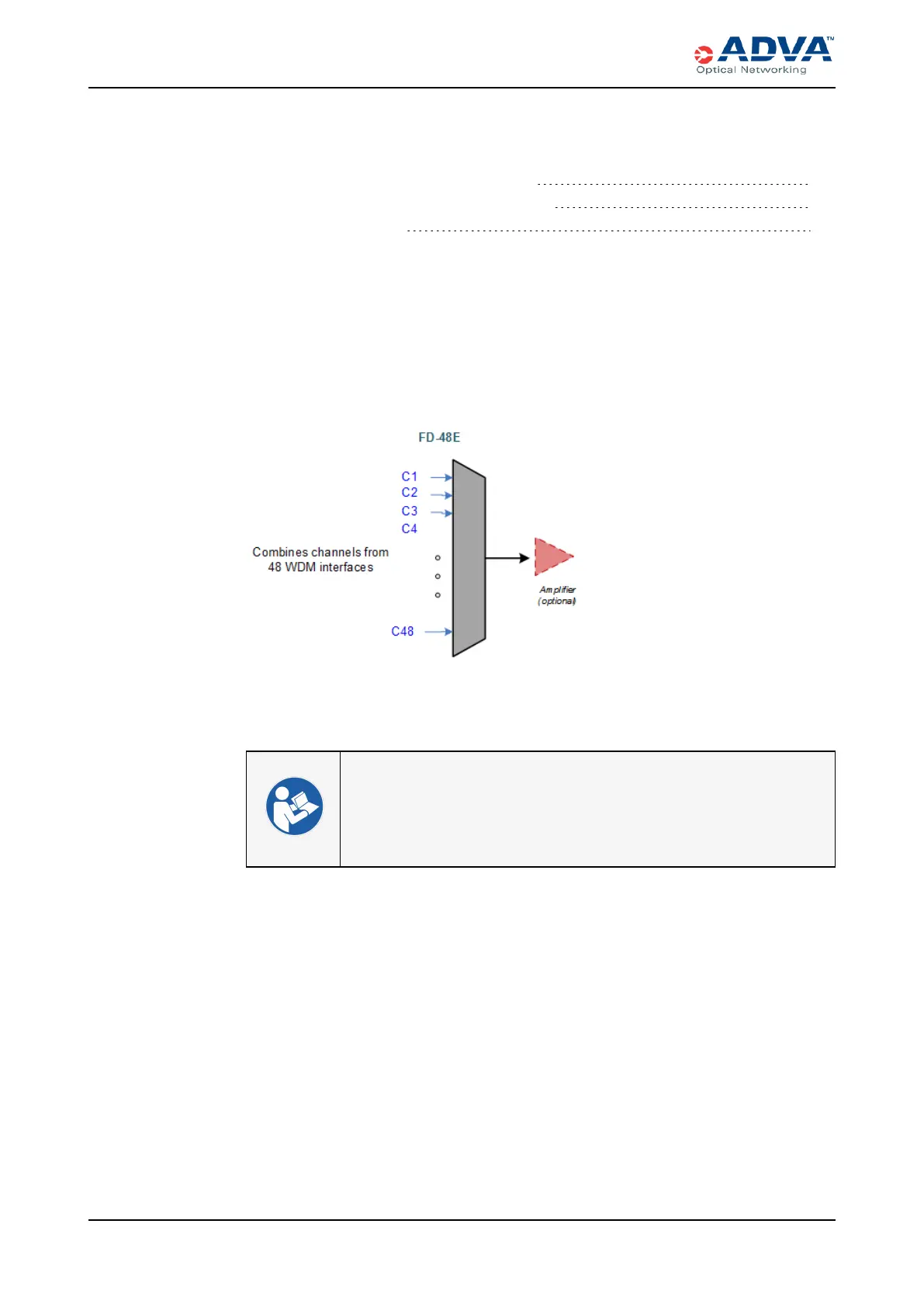

Figure 90: Up to 48 Multiplexed DWDM channels in C-band (with 100 GHz
spacing)
EDFA modules can only be placed at the FD-48E multiplexer network port as post-
amplifier (not at the client ports of the multiplexer).
l FD-48E
l SH12 Shelf
l SH4R Shelf
l Traffic Module Considerations
128 Channel Multiplexed with FD-128D
With a channel interface output power of maximum 6 dBm, the loss of the 128 channel
mux/demux (FD-128D) must be 5.8 dB.
