AM-S20H-2
Signal Path

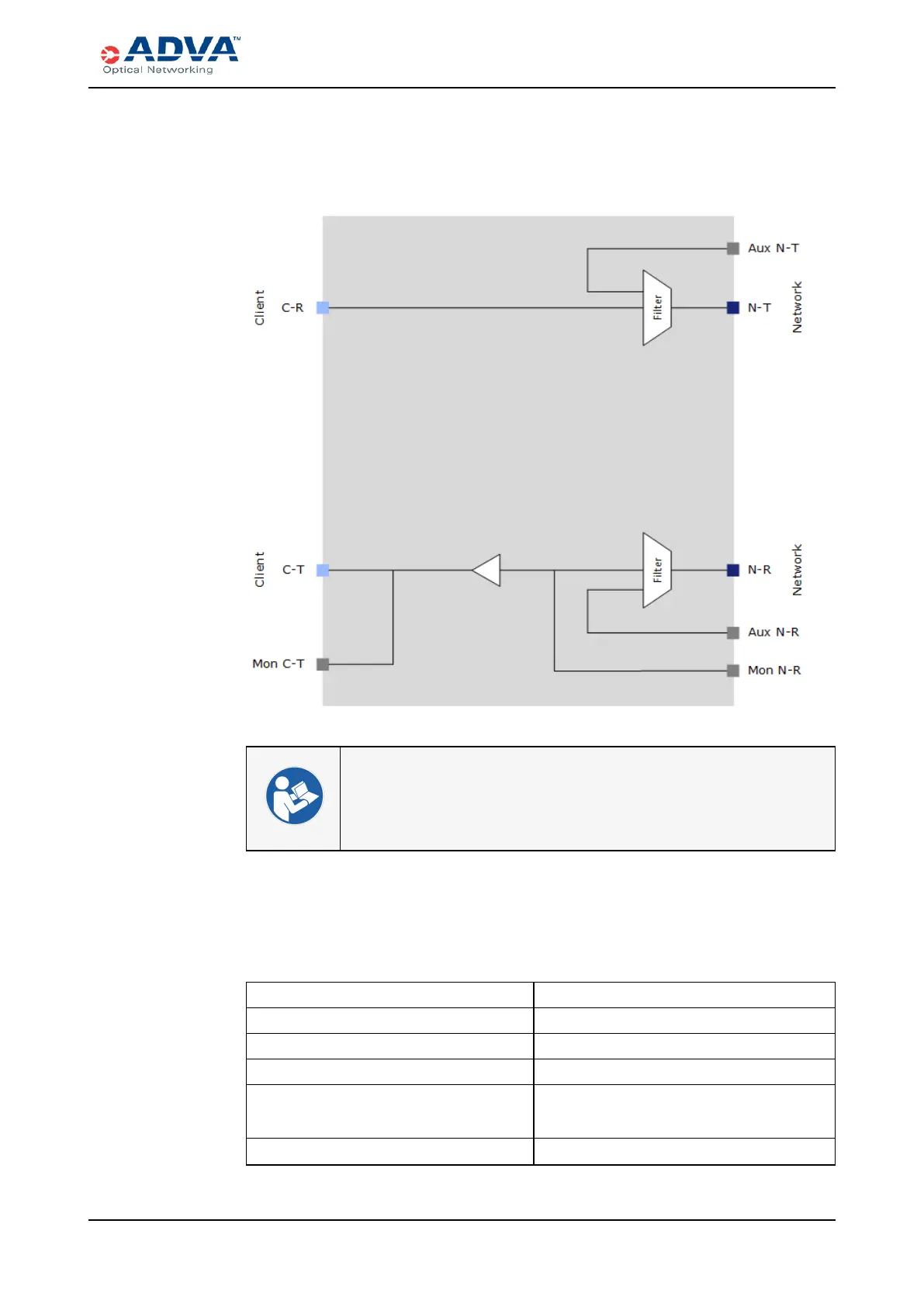

The following figure provides a simplified functional block diagram illustrating the AM-
S20H-2 signal path.
l Overview
l Features
l Interfaces
Specifications
Passband 1528.5 nm to 1568.5 nm
Polarization dependent gain <0.5 dB
Polarization mode dispersion <0.5 ps
OPT/OPR accuracy ±0.5 dB
Gain set range
l 19 dB to 35 dB
l Default: 27 dB
Gain set resolution 0.1 dB
Table 27: Optical Specifications — High gain EDFA (20 dBm Output) for N-R to
C-T
