Installing the SH12 Front Cover Extension

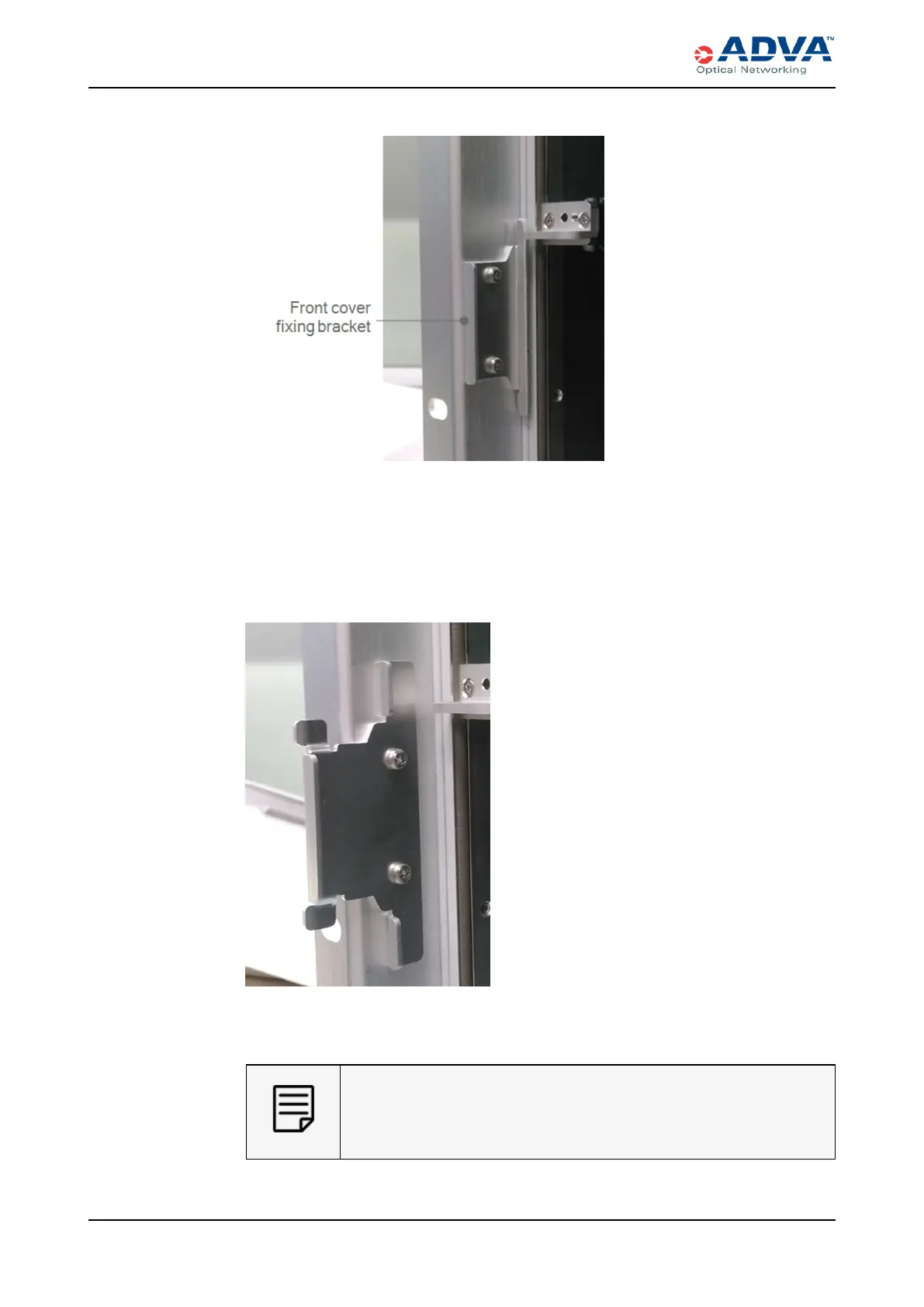

Figure 50: Front Cover Fixing Bracket
3. Position the appropriate cover extension bracket (80 mm or 95 mm) over the holes
that attached the front cover fixing bracket.
4. Use the Torx T10 screwdriver and the screws from Step 2 to attach the cover
extension bracket.
Figure 51: Attaching the Cover Extension Bracket
5. Repeat this procedure for the opposite side.
Save the cover fixing bracket pair and packaging material for future use.
