If you have stopped measurement during the interval time, the measurement
results of the current interval are discarded. The log of the current interval is not
displayed in Back field.
In this case, result data are re-calculated excluding the data of the current
interval when the measurement is stopped. This causes that "Count" and "Ratio"
displayed after the measurement will be different from that of during
measurement.
The sum of interval time (multiplied interval time by the number of back logs)
may not match the differential time between displayed time at left top and right
top after the measurement.
Open the left drop-down menu in the top row of buttons to select which
results you want displayed on the screen.
OTN - Alarms/Errors
OTN - Performance
CPRI - Alarms/Errors
CPRI - Frame
Delay - Round Trip Time
OTN options appear if the CPRI signal is carried by OTN.
Round Trip Time appears if Delay check box is selected on Delay screen in
Test Setup of BERT application.

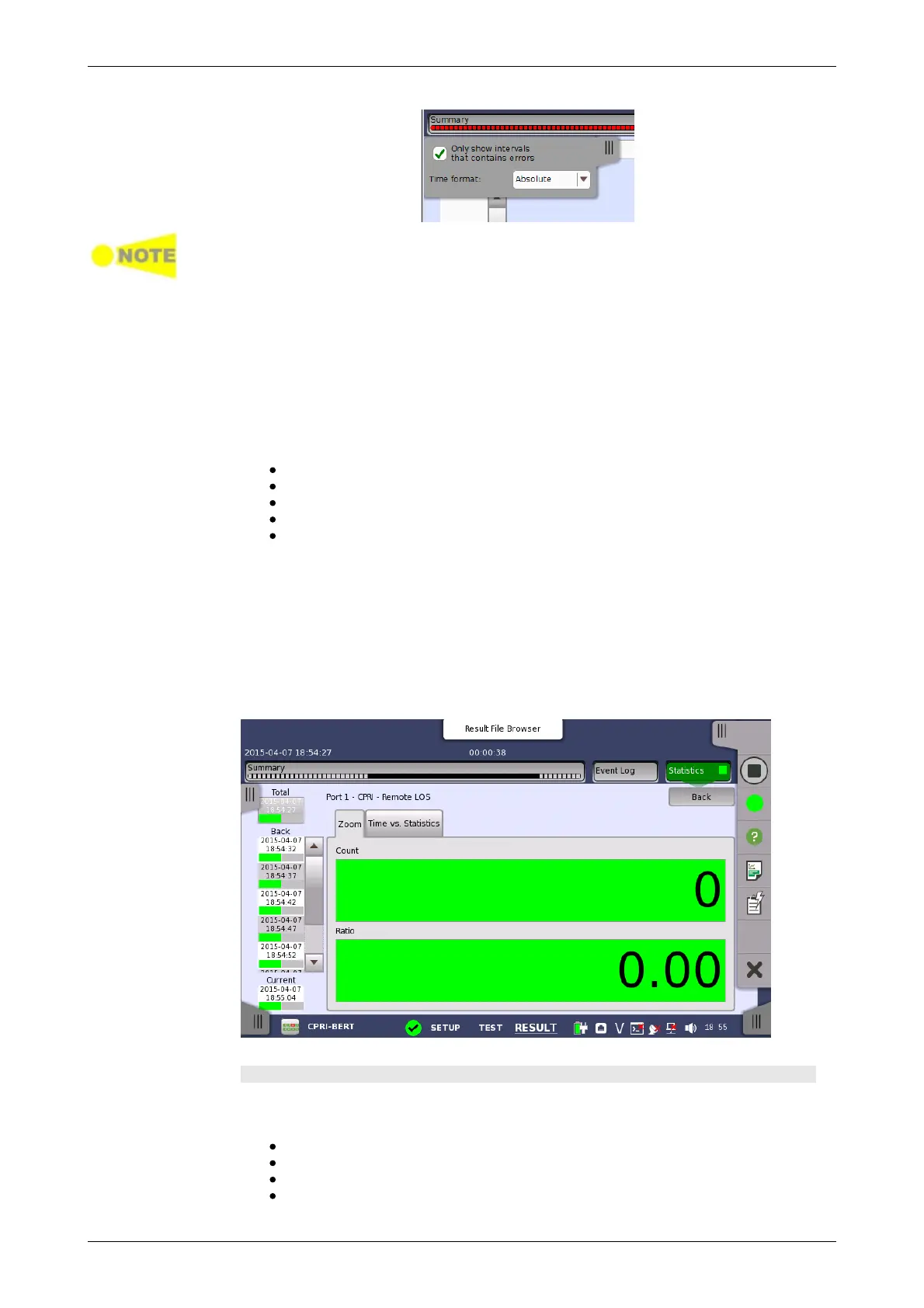

Touch a specific cell in a result table to zoom in on the corresponding result
item. The Count and Ratio fields are displayed on a Zoom tab page. A
Time vs. Statistics tab page is also available. Use the Back button or
touch the zoom filed to return to the statistics screen.
Selecting how results are displayed
Select the required notation for the results from the notation drop-down
menu.
Unformatted - e.g. 71892
SI prefix - e.g. 71.891 k (k means "kilo")
Engineering - e.g. 71.892E3
Scientific - e.g. 7.1892E4
