Selecting the
interval time
Burst length
If 'Insertion' is set to Manual, touch the button and set the burst length to
insert.
8.2.3.2 Event Log
Touching the Event Log button in the navigation area displays the screen
providing the event log data. Refer to Event Log of SDH/SONET/PDH/DSn
BERT application.
8.2.3.3 Statistics

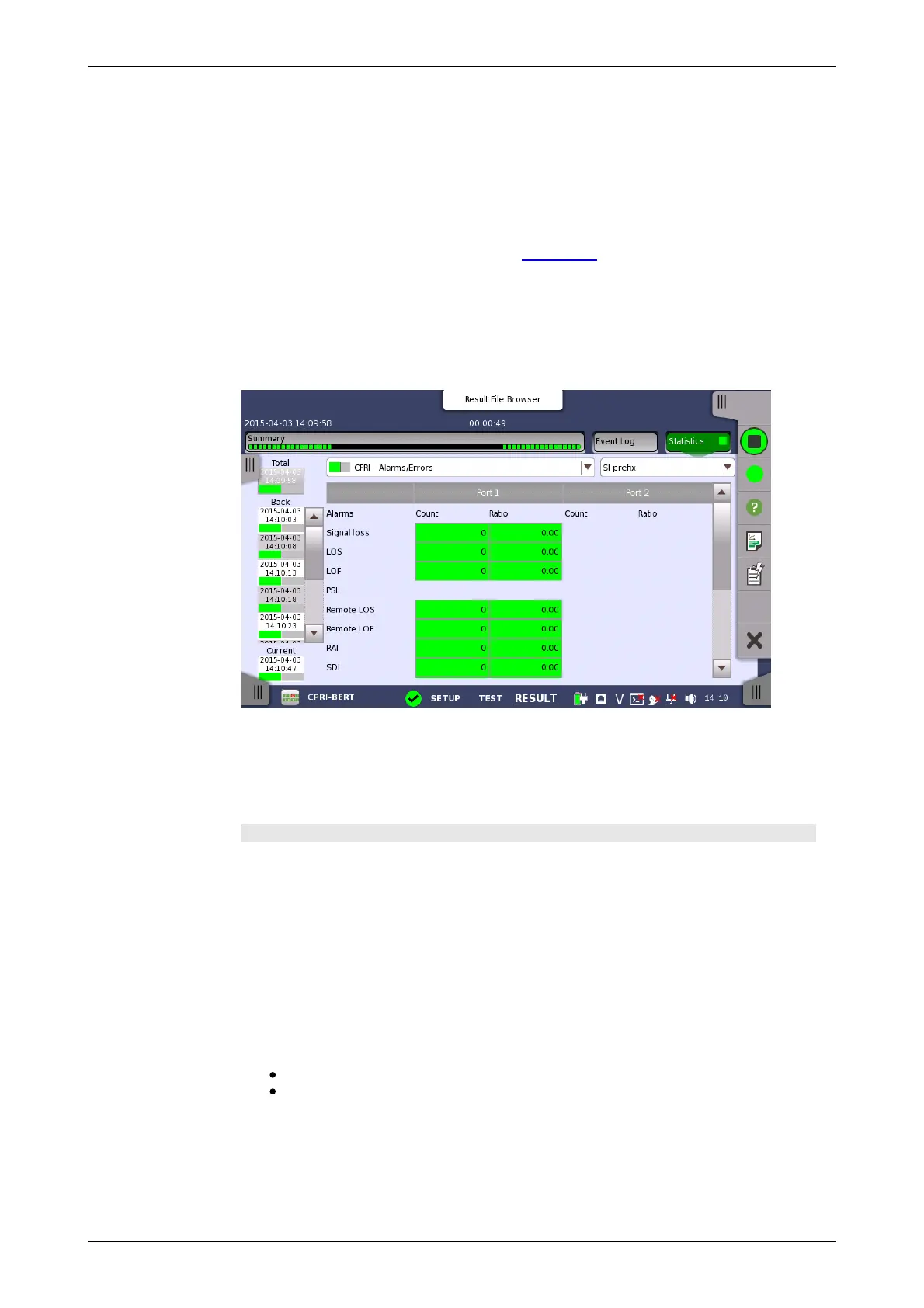

Touching the Statistics button in the navigation area displays the screen
shown below.
This screen presents a detailed analysis of the test results. You can choose
to view either the results of a specific time interval or the total results from
measurement start. The results can be displayed either in table (list) form or
as graphs. You can also zoom in on a specific result item and display either
a zoom or a histogram.
Selecting which results to view
Touch the Total button to switch the total values measured in all interval
times. The start time of measurement is displayed on the button.
Touching the button in left side Back field shows the measured values in the
interval time. The end time of the interval is displayed on the button.
Current button is displayed at left bottom when the measurement is
running. Touching the Current button shows the measured values in the
current interval time. The start time of the current interval is displayed on the
button.
The slide-out panel on the left-hand side of the screen contains the following
functions:
Only show intervals that contains errors
Time format
To Next Page
