Port mode
Clock
Configuration
Transceiver

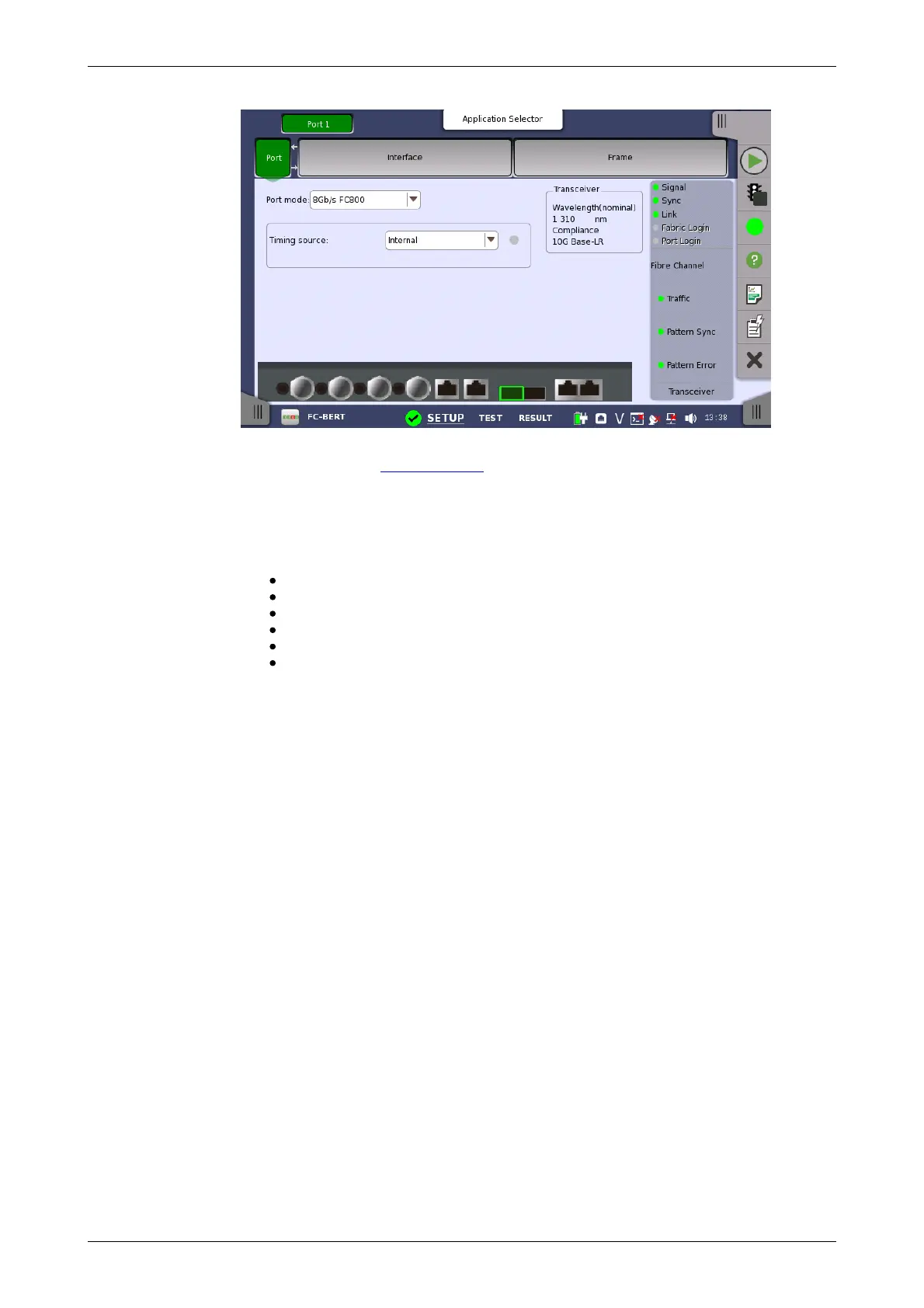

This screen allows you to specify the physical port configuration of the
currently selected Fibre Channel port. It can also be used to inspect the
current status of the selected port.
The configuration options available in the setup area of the screen are
described below. The status information is described in a separate section.
Select one from the following port mode options:
Off: The transmission will be disabled.
1Gb/s FC100: 100 MBytes/s
2Gb/s FC200: 200 MBytes/s
4Gb/s FC400: 400 MBytes/s
8Gb/s FC800: 800 MBytes/s
10Gb/s FC1200: 1200 MBytes/s
Use the drop-down menu to select the clock source.
Timing Source
Internal: Internal clock of the module
External: The clock input to the connector
GPS: The clock provided from the external GPS sensor
Received: The clock generated from the received signal
When External, GPS or Received is set, the right hand lamp indicates
whether a clock signal is detected or not.
Displays the Transceiver information.
9.1.2 Fibre Channel Frame Setup
9.1.2.1 Interface
Touching the Interface button in the navigation area displays the following
screen.
