Mediant 800 MSBG
2. From the 'Connection Type' drop-down list, select the required WAN connection type:
• 'Automatic IP Address Ethernet Connection' (see figure above)
• 'Manual IP Address Ethernet Connection':

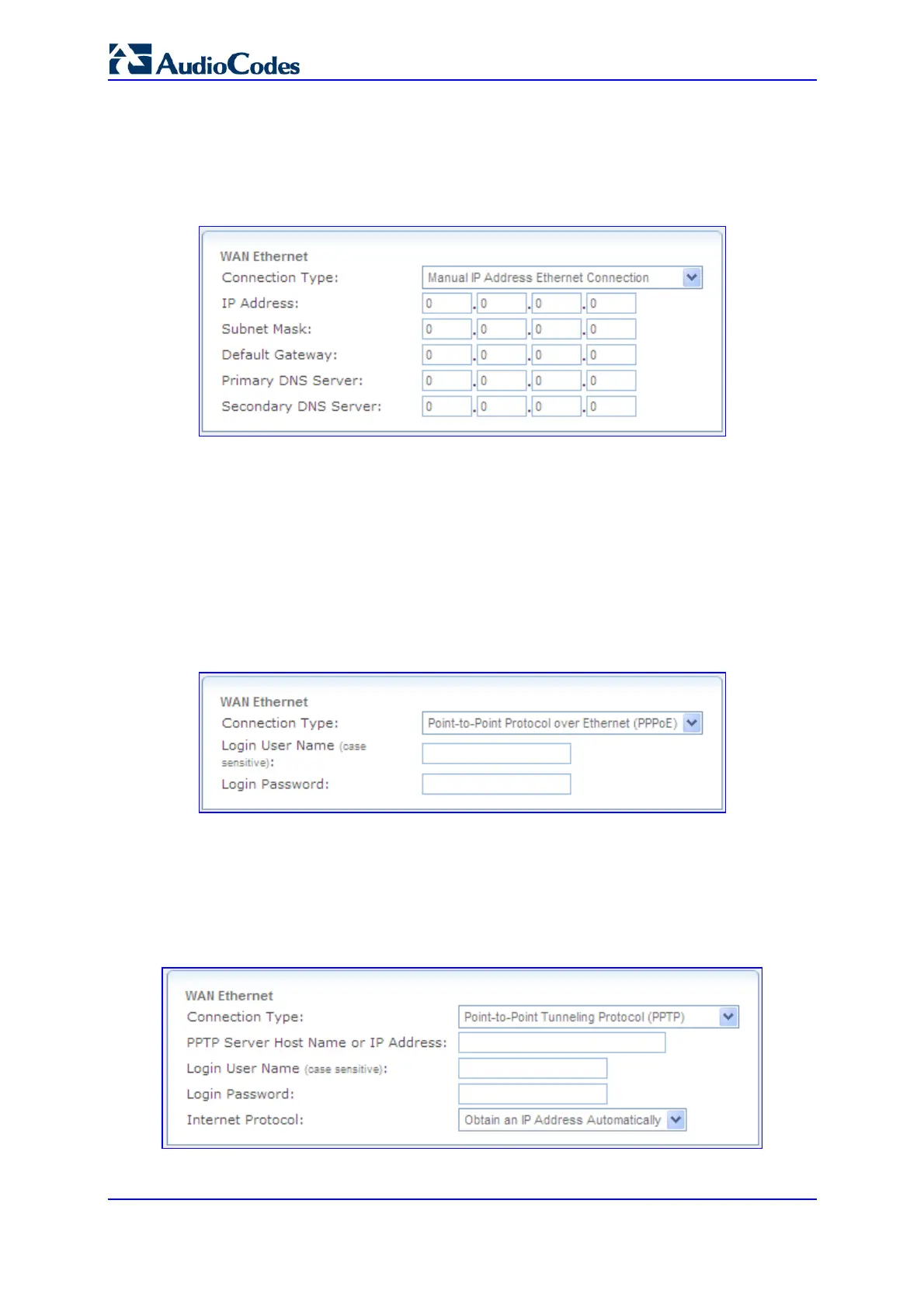

Figure 3-117: Manual WAN Connection
Specify the following:
♦ IP address
♦ Subnet mask
♦ Default gateway
♦ Primary DNS Server
♦ Secondary DNS Server
• 'Point-to-Point Protocol over Ethernet (PPPoE)':
Figure 3-118: PPPoE WAN Connection
Specify the following:
♦ Login user name
♦ Login password
• 'Point-to-Point Tunneling Protocol (PPTP)':
Figure 3-119: PPTP WAN Connection Type
